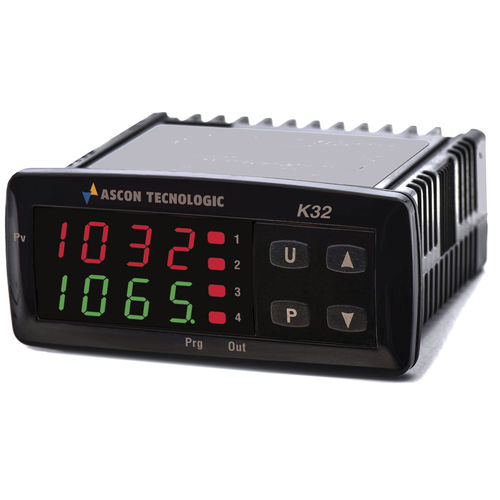

Mini-programmer controller with independent timer
This model can be required with a “Sensitive Touch” keyboard: that is a capacitive touch keyboard that guarantees complete protection of the instrument front from dust and liquids and that allows easy cleaning of the front.
Programming is carried out simply from the keyboard, via programming devices, or via a PC.
The serial communication on board, with Modbus protocol, allows integration with control, supervision and monitoring systems.
FUNCTION -
Programmer, Controller
DIMENSIONS -
78 x 35 mm
DISPLAY -
2 display with 4 digit 3 dynamic colours
POWER SUPPLY -
12 Vac/Vdc, 24 Vac/Vdc, 100… 240 Vac
INPUTS -
0/1… 5 V, 0/2… 10 V, 0/4… 20 mA, Pt100, PTC-NTC, Thermocouple
NUMBER OF OUTPUTS -
1, 2, 3, 4
OUTPUTS -
Relay and/or SSR control
DIGITAL INPUTS -
1, 2
INDEPENDENT TIMER -
Yes
NUMBER OF PROGRAMS / SEGMENTS -
1 program with 8 segments
INTERFACE -
RS 485 Modbus Slave, TTL Modbus
SPECIAL FUNCTIONS -
Digital retransmission, Hours/Days worked, Power on delay, Soft start, Transmitter power supply, User calibration, Wattmeter
CONTROL -
ON/OFF and PID single or double action
EXTRACTABILITY -
Not extractable, With fix terminal block, With removable terminal block
CERTIFICATIONS -
CE, UL
