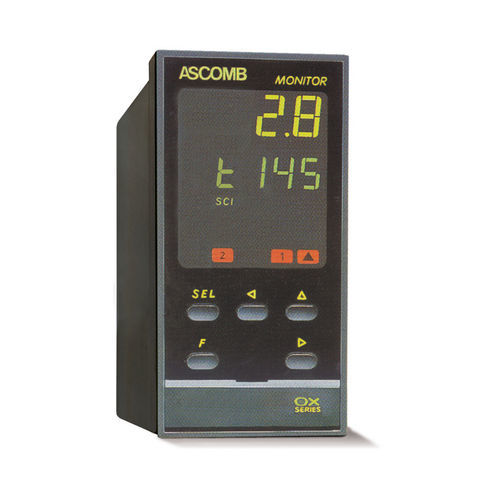

Temperature indicator OXM

4-digitRS-485

Combustion monitor to be combined with measurements of oxygen, flue gas temperatures and combustion air for the calculation of: Yield Excess of air C O2% 1 analogue oxygen input 2 analogue air/flue gas temperature inputs 3 logic inputs for Hold, Fail and fuel type switching 2 analogue retransmission outputs Technical specifications Dimensions - 48 x 96 mm Power supply - 24 Vac/Vdc, 100… 240 Vac Inputs - 0/4… 20 mA, mV from probe ZO2 Number of outputs - 1, 2, 3 Outputs - 0/2… 10 V, 0/4… 20 mA, Relay and/or SSR control Auxiliary input - 3 Logic inputs Retransmission output - 0/2… 10 V, 0/4… 20 mA Extractability - By the front Certifications - CE
