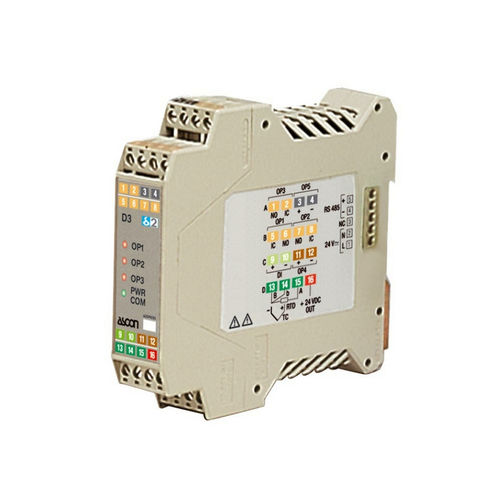

LED temperature controller D3

without displayPIDprogrammable

Double action controller with continuous output Continuous control on DIN rail. The single bus for power supply and serial communication, the total extractability, the easy replacement even under voltage, the digital input to use remote controls, the Timer and Start-up functions, the automatic tuning, the output for servomotors and the continuous control output make the deltadue® D3 line among the most advanced DIN rail controller capable of satisfying almost all control requirements: discontinuous, continuous, single and double action and for servomotors. FUNCTION - Controller DIMENSIONS - DIN rail mounting POWER SUPPLY - 24 Vac/Vdc INPUTS - 0/4… 20 mA, Delta T Pt100, Pt100, Thermocouple, Universal NUMBER OF OUTPUTS - 1, 2, 3, 4, 5 OUTPUTS - 0/4… 20 mA, Relay and/or SSR control, Servomotor DIGITAL INPUTS - 1 INDEPENDENT TIMER - Yes RETRANSMISSION OUTPUT - 0/4… 20 mA INTERFACE - RS 485 Modbus Slave SPECIAL FUNCTIONS - Soft start, Transmitter power supply, User calibration CONTROL - ON/OFF and PID single or double action, Servomotor EXTRACTABILITY - By the front CERTIFICATIONS - CE, UL
