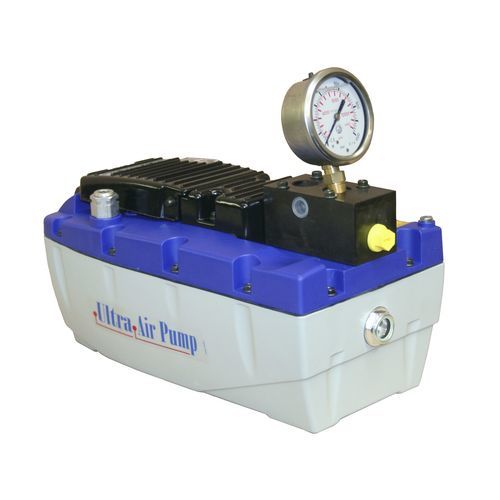

Hydro-pneumatic hydraulic pump UPL series

pistonscrewpneumatic

Intended for automated hydraulic systems, for industrial tools, clamping systems and automatic systems of intense use The UPL air-hydraulic pump of the UP Series is a single-acting pump with a pedal operation (lockable in delivery position) and a linear pneumatic piston, useful for being installed in any automatic hydraulic systems. Thanks to an operating pressure up to 1000bar, this pump can keep any automated hydraulic system constantly pressurized. The stall and restart function restores any pressure drop and the circuit pressure returns immediately to the preset value. The pressure gauge (included) housed on the pump driving block allows instant pressure check operations. Air-hydraulic pump with pedal drive and linear pneumatic piston -UPL: main features Two-position pedal (forward / hold) lockable in the forward position Continuous stall / restart operation for immediate pressure recovery Single acting cylinder compatibility (double acting with optional in-line valve) 0-1000bar scale pressure gauge housed on the control block Compact and robust construction for heavy duty and durability Easy maintenance No air lubricated required It works through the normal pneumatic network Versatile use in both vertical and horizontal positions Vent screw on the lid for tank ventilation during use Relief safety valve on the lid Maximum oil pressure valve adjustable from the outside to protect the circuit components Removable pyrex porthole level indicator for maximum easy refill Slots on the base support for easy installation onto the application Lightweight Low noise (75dBa) Various tank capacities (2.4 – 5 – 10 – 20) L for small and large cylinders
