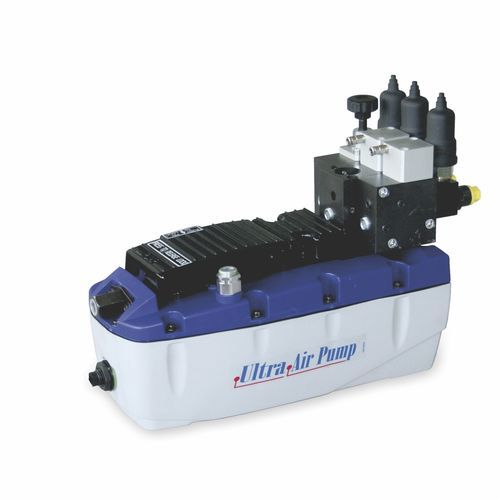

Hydro-pneumatic hydraulic pump UPHC Series
pistonpneumaticcompact

hydro-pneumatic hydraulic pump
hydro-pneumatic hydraulic pump
hydro-pneumatic hydraulic pump
hydro-pneumatic hydraulic pump
Add to favorites
Compare this product


Characteristics

Type
piston
Operation
pneumatic
Other characteristics
compact, high-pressure, clamping, hydro-pneumatic
Pressure

500 bar (7,252 psi)

Description

The UPHC pump consists of a hydropneumatic power unit and a high-pressure oil distribution System, suitable for uses such as the operation of single acting hydraulicclamping cylinders. The control System consists of a central distributor block to which you can add two additional distributor blocks on each side, for which you can choose manual or pneumatic operation. It is therefore possible to control individually up to 5 different applications, simultaneously and independently from each other. These pumps, like the others in the U P family, are available in 250 and 500 bar versions and with 2.4 / 5 / 7 /10 or 20 litres tanks. The choice and arrangement of control type, manual or pneumatic, is completely free. Each distributor block, either central or side, can be controlled manually or pneumatically with a spécial actuator cylinder. These very compact pumps are suitable to be installed in a small space and in critical environment for presence of vapours or shavings, such as on board machine tools. The System can also be completed with accessories such as the level sensor (useful for reporting lack of oil inside the tank) and the circuit pressure sensor (useful for reporting the critical values of pressure), ail conditions that may cause equipment damage or danger to operators.

Catalogs

No catalogs are available for this product.
