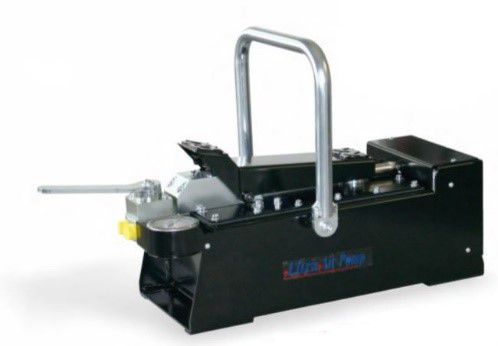

Hydraulic piston pump UMP705

handleversteel

Double piston in-line air-hydraulic pumps and double actuation: foot control and lever distributor hand valve Our UMP705 air Hydraulic Pump of the UMP Series is equipped with a double linear piston and a double drive: a foot pedal control and a lever distributor hand valve. Sturdy and efficient, it has an oil flow rate of 0.29 (l/min) at 250bar and a max working pressure of 700bar. The UMP705 pump can be applied to any hydraulic applications; especially where a large oil flow rate (l/min) is required and the simultaneous drive of two actuators alternately. It’s a very sturdy pump suitable for mining applications and any other hydraulic applications where a fast and reliable oil flow delivery and a high output pressure are required.. Double stage air-hydraulic pump with double drive 700bar – UMP705: main features UMP Series Product line: Industrial tools, large plants, mining use, simultaneous actuators, clamping Foot operated 3 positions (advance / hold / return) and lever distributor valve (4/3) Double in line piston Ergonomic handle for easy handling and transport Extremely sturdy (main parts in treated steel) Standard air reducer-filter-lubricator
