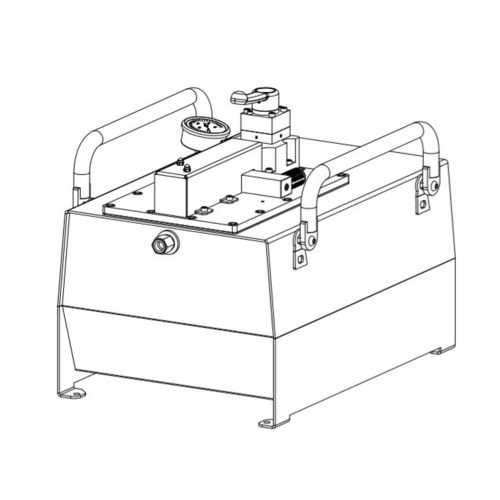

Oil pump UPMD725 RC

airpneumaticpiston

The UPMD725 RC pump is a double-acting air-hydraulic pump with double pneumatic motor, pneumatic RC drive and 4/3 lever distributor hand valve Equipped with a pressure gauge, the oil tank capacity is 25L and oil flow 0.26 (l/min) at 700bar. The UPMD725 RC pump, like all our air-hydraulic pumps of the UPD Series, can be applied toany air-operated hydraulic system. The double pneumatic motor supplies a very high oil flow at the 1st stage for a quicker advance of large cylinders, while the 25 liter oil steel tank allows to work with a wide range of large cylinders sizes. Air-hydraulic pump with double pneumatic double-acting motor 700 bar UPMD725-RC: main features UP Series: Product line: Industrial tools, large systems, lifting, clamping systems, large cylinders, automations Pneumatic RC operation (advance) CETOP 3 standard connection Hand valve 4/3 700bar in treated aluminum installed on Cetop Ø63mm/0-1000bar pressure gauge standard Double acting cylinder compatibility (single acting cylinder allowed)) Tilting handle for easy grip during transport Secondary outlport for oil return to the tank Double air motor for large oil flows (l/min) and high working pressures (700 bar) Compact and sturdy construction for heavy duty and long durability Easy Maintenance No air lubricated required It works through the normal pneumatic network Filling oil cap with ventilation during use Internal oil pressure relief valve to protect the circuit parts Removable pyrex oil level indicator for maximum easy refill Slots on the base support for easy fix on the application Lightweight Double silencer for maximum comfort and safety during use (85dBa) 25 L tank capacity for large cylinders
