Hydraulic screw pump HP series

pneumaticspringlubricated

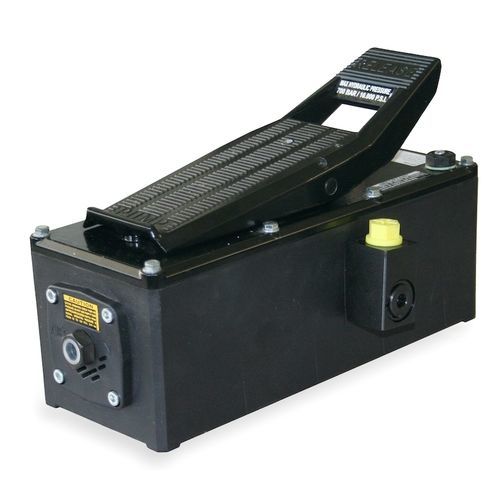

air-hydraulic pump is a single-acting pedal operated pump with an oil flow rate of 0.2 l/min at 700bar of working output pressure Like all the pumps of the HP Series, it is suitable for any hydraulic application which require very high hydraulic output pressures and a moderate and controllable oil flow, to ensure the best precision during the operations. Suitable for use in multiple applications: industrial tools, lifting systems, car repair, clamping systems, hydraulic equipment (presses, jacks, …), tire changers, bead breakers, automotive. Single acting air-hydraulic pump with pedal operation 700bar-HP700: main features Operated through pedal Unmistakable pedal design with handle for portability 3-position pedal operation with spring return (advance, hold and return) Single-acting cylinder compatibility (double-acting with optional in-line distributor) Compact and sturdy construction for heavy duty and long life Easy maintenance No air lubricated required Connectable to the normal pneumatic network Versatile use in both horizontal and vertical positions Helical vent screw on the lid for tank ventilation during use Preset safety valve on the cover against any overload in the pump Externally adjustable oil pressure relief valve against any overload Rotating oil port for easy connection to the hydraulic system and improved mobility Slots on the base support for easy installation and fixing to the system Lightweight
