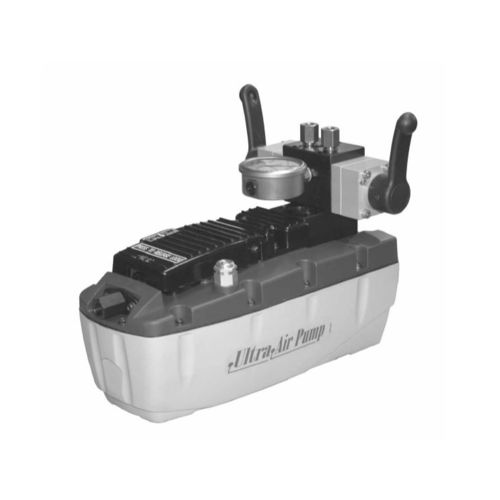

Hydro-pneumatic hydraulic pump UPM-2V series

pistonscrewpneumatic

The UPM-2V air-hydraulic pump is a double-acting pump with double 4/3 lever distributor hand valve, 4 hydraulic outputs, pressure gauge and pressure reducing valves included. Oil flow (l / min) from 2.6 to 0.15, max working pressure 1000 bar. Main fields of application: industrial tools, clamping systems, automation and complex hydraulic systems. Pneumohydraulic double valve pump 4/3 D / E CETOP 3 up to 1000bar-UPM 2V: features Two-position pedal (forward / hold) lockable in the forward position CETOP 3 universal connection Double 4/3 steel hand valve assembled on a 4-way control driving block Control valves on each distributor Ø63mm pressure gauge – 0-1000bar scale installed Double-acting cylinder compatibility (single-acting allowed) Compact and sturdy construction for heavy duty and long durability Easy maintenance No air lubricated required It works through the normal pneumatic network Versatile use in both vertical and horizontal positions Vent screw on the lid for tank ventilation during use Relief safety valve on the lid Maximum oil pressure valve adjustable from the outside to protect the circuit components Removable pyrex porthole level indicator for maximum easy refill Slots on the base support for easy installation onto the application Lightweight Low noise (75dBa) Oil tank capacities (2.4L – 5L – 10L – 20L) for small and large cylinders
