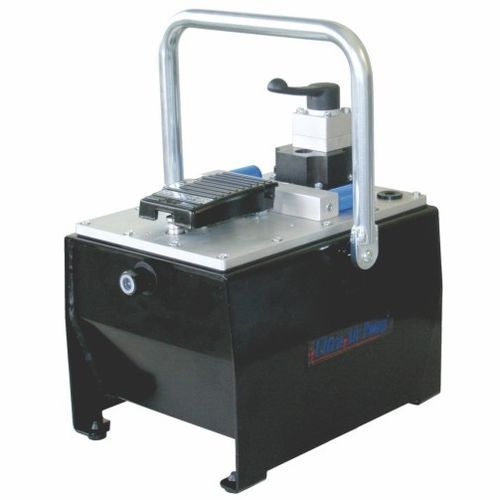

Hydro-pneumatic hydraulic pump UPMD series

pistonfoot-operatedlever

The double pneumatic motor provides a high flow rate of oil to the 1st stage for quick operation of the cylinder. The 81 Steel tank allows using a wide range of cylinders. The ergonomie handle and compact size allow for easy transport. Available in three mopels: UPFD Double pump, pedal control, single acting UPMD Double pump, manual valve, double acting UPRDS Double pump, remote contThe UPMD710 pump is a double-acting air-hydraulic pump with double pneumatic motor. Air inlet operated through a pedal with lock-up function. Hydraulic actuation through a 4/3 lever distributor hand valve, 10L oil tank capacity, oil flow (l/min) 0.26 to 700bar. The UPMD710 pump, like all our air-hydraulic pumps of the UPD Series, can be applied toany air-operated hydraulic system. The double pneumatic motor supplies a very high oil flow at the 1st stage for a quicker advance of large cylinders, while the 10 liter oil steel tank allows to work with a wide range of large cylinders sizes. Double acting air-hydraulic pump with double pneumatic motor and lever distributor hand valve UPMD710: main features UP Series Product line: Industrial tools, large systems, lifting, clamping systems, large cylinders, automationi Two-position pedal (advance / hold) lockable on automatic systems CETOP 3 standard connection Hand valve 4/3 700bar in treated aluminum installed on Cetop Double-acting cylinder compatibility (single-acting cylinder allowed) Tilting handle for easy grip during transport Secondary outlport for oil return to the tank Double air motor for large oil flows (l/min) and high working pressures (700 bar) Compact and sturdy construction for heavy duty and long durability Easy Maintenance
