Hydro-pneumatic hydraulic pump HP series

hydro-pneumatic hydraulic pump
hydro-pneumatic hydraulic pump
hydro-pneumatic hydraulic pump
Add to favorites
Compare this product


piston, helical, screw
manually-controlled, pneumatic
Other characteristics
high-pressure, compact, oil, double-acting, single-acting, in-line, fixed-displacement, standard, automatic, with pressure controller, vertical, portable, horizontal, hydro-pneumatic, remote control, adjustable, lubricated

250 bar, 350 bar, 500 bar, 700 bar, 1,000 bar (3,626 psi)

Flow rate

Max.: 2.4 l/min (0.63 us gal/min)

Min.: 0.1 l/min (0.03 us gal/min)

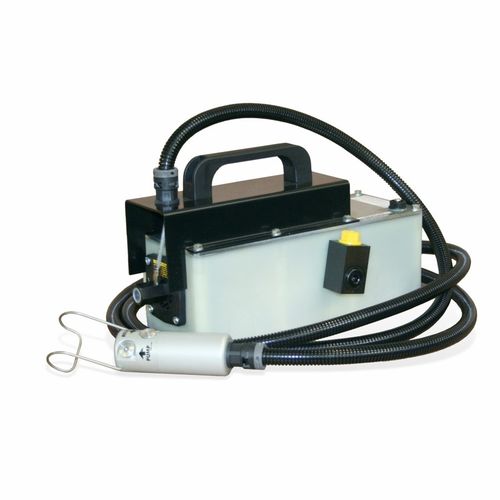

The HP-REMOTE air-hydraulic pump of the HP Series is a remotely operated pump with ergonomic push-button panel. With pneumatic connection length of 3 meters, the HP-REMOTE model has an oil flow rate from 2.4 to 0.1 l/min and working pressures up to 1000bar. The HP-REMOTE pump, like all the HP Series pumps, can be installed in any hydraulic applications which requires high working pressures and moderate and controllable oil flow. Our HP Series air-hydraulic pumps can ensure the best precision during the operations. Widely used in multiple fields of application, they are especially suitable for: industrial tools, clamping systems, automatic systems, continuous and intensive use. Air-hydraulic pump with pneumatic remote pendant up to 1000bar- HP-REMOTE: main features Pneumatic piston drive with brass pins Pneumatic piloting with remote control with 2 or 3 buttons (safety / critical stop) Ergonomic handle for easy handling and transport Pneumatic connection to the push-button panel standard length 3m (other lengths on demand) Single-acting cylinder compatibility (double-acting with optional in-line hand valve) Compact and sturdy construction for heavy duty and long durability. Easy maintenance. No air lubricated required. Connectable to the normal pneumatic network Versatile use in both horizontal and vertical positions Helical vent screw on the lid for tank ventilation during use Preset safety valve on the cover against any overload in the pump Externally adjustable oil pressure relief valve against any overload Rotating oil port for easy connection to the hydraulic system and improved mobility Slots on the base support for easy installation and fixing to the system
