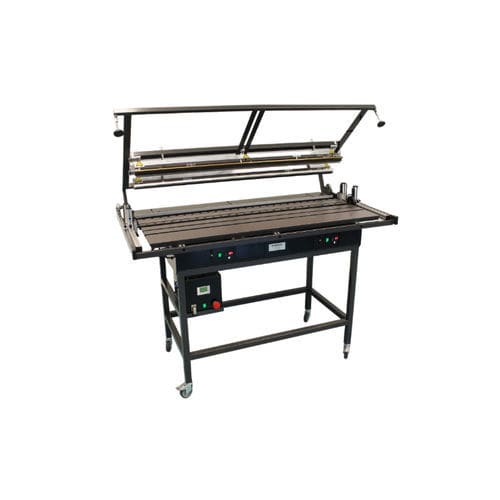

Electric bending machine AFF-D 135-i

for plastic profilesautomaticmobile

Overview
The i-Series version features a digital touchscreen and memory function for saving settings and parameters. The AFF-D 135 thermoplastic bending machine is designed for precise, consistent bending of thin thermoplastic sheets for medium-sized industrial projects.

Description
The automatic floor-standing bender accepts thin sheets and allows adjustment of hot wires, fold positions and cooling time. It supports double bends (two adjustable bending lines) or a single bend. The machine includes an adjustable back stop, digital temperature control (°C/°F), electronic timer and foot pedal. Two adjustable electronic heating elements and 2 x 3 mm Teflon heating profiles are fitted; one heating wire and one vacuum pump can be switched off for single-bend operations. The front hot wire and vacuum system can be moved with millimetre precision to adjust spacing between folds. A mobile stand, vacuum pumps and pressure bars secure sheets during processing.

Applications

• Sign manufacturing: production of medium-sized signs and point-of-sale displays.
• Acrylic furniture and decorative parts: manufacture of medium-sized furniture components and decorative items.
• Prototyping and industrial models: production of prototypes and models for testing and design validation.
• Industrial components: fabrication of plastic parts for various industrial applications.
• Custom and creative projects: batch production of bespoke plastic components and creative works.

Main features

• Bending capacity: working length 1,350 mm (135 cm).
• Material compatibility: acrylic (PMMA), polycarbonate (PC), polystyrene (PS), PVC and other thermoplastics.
• Double bend (D): two adjustable bending lines; simultaneous double bends or single bend.
• Heating: 2 adjustable electronic bottom heating elements; 2 x 3 mm Teflon heating profiles (replaceable).
• Controls: digital touchscreen, memory function, digital temperature control (°C/°F), electronic timer and foot pedal.
• Angle and positioning: 2 protractors for angle control; adjustable distance between folds 50–460 mm; millimetre-positioning of front hot wire.
• Vacuum and hold-down: 2 vacuum pumps and pressure bars; one pump can be deactivated for single-bend work.
• Power: 230 V, 1,200 W.

Technical characteristics

• Model: AFF-D 135-i
• Series: i-Series (digital touchscreen, memory)
• Model type: floor
• Bending method: automatic
• Working length: 1,350 mm
• Working thickness: 0.2–1.5 mm
• Heating method: bottom only
• Heating elements: 2 adjustable electronic
• Heating profiles: 2 x 3 mm Teflon
• Distance between folds: 50–460 mm
• Controls: digital temperature (°C/°F), timer, foot pedal
• Vacuum: 2 pumps
• Power supply: 230 V
• Power consumption: 1,200 W
• Dimensions (L×W×H): 1,560 × 880 × 740 mm
• Weight: 175 kg
