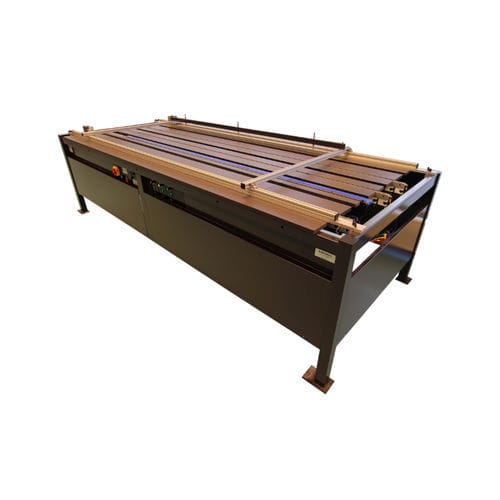

Electric bending machine HRT-D 300

for plastic profilessemi-automatic

Description
The HRT-D acrylic sheet bending machine is designed to process acrylic and other thermoplastic panels and bend them to precise shapes. The machine shares construction features with the HRP 300 but is supplied without a top cover. It is fitted with automatic infeed and a conveyor for continuous handling and configured for series production up to 2,000 parts per hour. The machine is semi-automatic and supplied with bottom-only heating, adjustable heating elements and up to four temperature controllers for up to four heating lines and four clamping roller tracks. The work surface consists of several adjustable heat-resistant panels, an adjustable conveyor belt and a double rip fence with inch and millimetre scales. The modular design allows later expansion with additional heating profiles or control units.

Applications

• Signage fabrication: Production of signs and displays for advertising and visual communication.
• Acrylic furniture and decoration: Manufacture of furniture components and decorative elements in acrylic.
• Prototypes and industrial models: Formation of prototypes and models for testing and product development.
• Industrial components: Production of plastic parts for varied industrial applications.
• Construction and architectural elements: Fabrication of plastic elements used in construction and architecture.

Main features

• Bending capability: Handles a range of widths and thicknesses of thermoplastic sheets (specifications vary by configuration).
• Material versatility: Suitable for acrylic (PMMA), polycarbonate (PC), polystyrene (PS), PVC and other thermoplastics.
• Adjustable temperature control: Up to four temperature controllers provide precise heating without damaging materials.
• Double bend (D): Enables simultaneous double bends to increase throughput.
• Automatic handling: Automatic infeed and conveyor belt for continuous series production.
• Adjustable heating elements: Heating wires adjustable in height for accurate process control.
• Modular expandability: Prepared for addition of multiple heating profiles and extra control units.
• Productivity: Configured for series production up to approx. 2,000 parts/hour depending on geometry and cycle.

Technical characteristics HRT-D 300
Model type: Floor
Bending method: Automatic or manual
Bending lines: Several lines
Heating method: Bottom only
Bottom heating lines: 1 - 4
Modular extendable: Yes
Construction: 1 to 4 bottom lines / 1 to 4 top lines
Working length: 3,000 mm
Working thickness: 1 - 10 mm (max. 12 mm)
Connection voltage: 230 V
Electrical power: 1 kW – 4 kW
Dimensions (L x W x H): 3,390 x 1,300 x 1,060 mm
Weight: 470 kg
Upper heating: Not available
Distance between 2 bends: 20 – 1,000 mm
Estimated production: Up to 2,000 parts/hour (depending on part geometry)
Standard equipment: Automatic infeed, conveyor belt, up to 4 temperature controllers and 4 clamping roller tracks

Technical specifications

• Model: HRT-D 300
• Type of heating: Bottom only (modular extension possible)
• Number of heating lines: 1 – 4
• Working length: 3,000 mm
• Working thickness: 1 – 10 mm (max. 12 mm)
• Voltage: 230 V
• Power consumption: 1 kW – 4 kW
• Overall dimensions (LxWxH): 3,390 x 1,300 x 1,060 mm
• Weight: 470 kg
• Distance between bends: 20 – 1,000 mm
