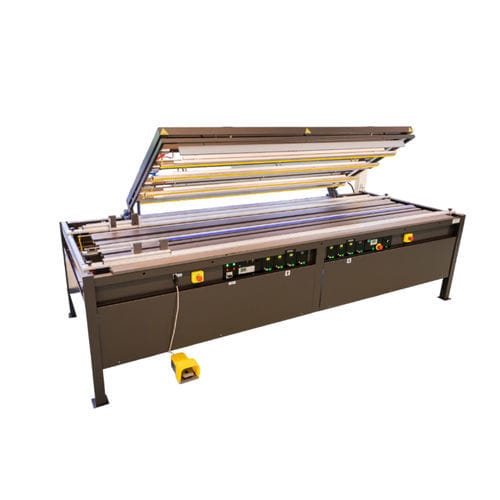

Electric bending machine HRP-D

for PVC profilesfor plastic profilesautomatic

Description
The HRP-D acrylic bending machine is a floor-mounted semi-automatic press designed to form large thermoplastic panels to precise shapes. The machine features modular construction, a time-controlled upper frame, automatic feeding and a conveyor transport system. Configurable with up to 8 height-adjustable heating lines and digital temperature controllers, the HRP-D is suited to high-volume production runs with production rates up to 2,000 parts per hour depending on material and configuration.

Applications

• Sign making: Production of large-format signs and displays for advertising and visual communication.
• Acrylic furniture and decoration: Manufacturing of large acrylic furniture components and decorative pieces.
• Prototypes and industrial models: Production of large prototypes and models for testing and industrial design.
• Industrial components: Fabrication of large plastic parts for diverse industrial applications.
• Construction and architectural elements: Forming plastic elements used in architectural and construction projects.

Main Features

• Double bend (D): Simultaneous double-bend capability for increased process throughput.
• Material compatibility: Processes acrylic (PMMA), polycarbonate (PC), polystyrene (PS), PVC and other thermoplastics.
• Temperature control: Digital controllers (up to 8) for precise heating of upper and lower zones to avoid material damage and ensure uniform bends.
• Modular design: Expandable with additional heating profiles and control units to match production needs.
• Operational features: Height-adjustable heating lines, time-controlled upper frame, automatic feeding and conveyor integration.
• Energy performance: Configurable electrical power range to optimize consumption per configuration.

Technical characteristics HRP-D (summary)
Model type: Floor
Bending method: Automatic - Manual (semi-automatic with automatic feeding and transport)
Bending lines: Multiple (configurable up to 8 heating lines)
Heating method: Lower and upper (double-sided heating)
Lower heating: 1 - 4
Upper heating: 1 - 4
Modular extendable: Yes
Construction: 1 to 4 bottom lines / 1 to 4 top lines
Working length: 3,000 mm
Working thickness: 1 - 12 mm (max. 25 mm depending on material)
Distance between 2 bends: 20 - 950 mm
Connection voltage: 400 V
Electrical power: 2 kW - 8 kW (depending on configuration)
Dimensions (LxWxH): 3,390 x 1,300 x 1,720 mm
Weight: 750 kg

Technical specifications

• Production capacity: Up to 2,000 parts per hour with automatic transport system (dependent on material and configuration).
• Temperature range: Adjustable, typically up to around 600 °C depending on heating elements and materials.
• Heating control: Up to 8 independent temperature controllers for upper, lower lines and pressure bars.
• Delivery scope: Time-controlled upper frame, automatic feeding system, adjustable conveyor belt, parallel stop with inch and millimeter indicators.
