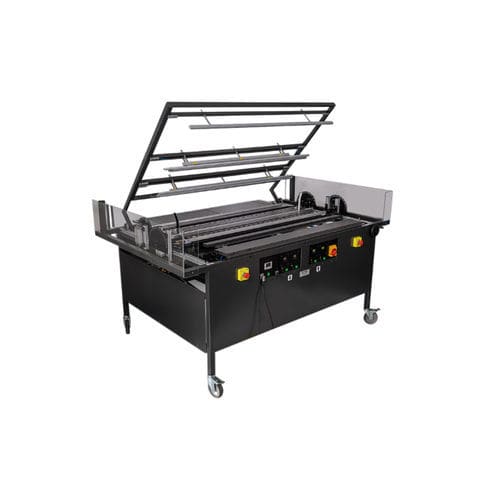

Electric bending machine ABM-D 135-i

for plastic profilesfully-automatic

Overview
The ABM-D 135-i (i-Series) is a fully automatic thermoplastic sheet bending machine with digital touchscreen and memory function to save settings and parameters. It bends acrylic and common thermoplastics up to 1.350 mm width and handle material thicknesses typically from 0.5 to 5 mm. The machine features two adjustable automatic bending lines with conveyor-based angle adjustment, two lower and two upper heating profiles controlled by four temperature controllers, and a movable underframe with brakes for optimal working height.

Operation and key elements
The ABM-D 135-i performs simultaneous double bends (D) per cycle. Each bending line has two conveyors for precise angle setting, vacuum system and pressure bars to hold the sheet flat and in position. The complete bending assembly (heating profile, bending system and vacuum) is movable to adjust distance between bending lines; one bending line can be disabled if only single operations are required. Controls are intuitive for quick setup and repeatable production.

Applications

• Sign fabrication: Production of medium-sized signs and displays for advertising and visual communication.
• Acrylic furniture and decorative elements: Manufacture of medium-sized furniture parts and decorative pieces in acrylic.
• Prototypes and industrial models: Creation of prototypes and models for testing and industrial design.
• Industrial components: Production of plastic components for various industrial uses.
• Creative and custom projects: Suitable for medium-sized custom and creative manufacturing.

Main features

• Bending capacity: Handles sheets up to 1.350 mm wide.
• Material versatility: Works with PMMA (acrylic), PC (polycarbonate), PS, PVC and other common thermoplastics.
• Double bend (D): Two bends performed simultaneously to increase productivity.
• Adjustable temperature control: Four temperature control units for precise heating without damaging material.
• 2+2 heating profiles: Two lower and two upper heating elements for uniform heating.
• Ease of use: Digital touchscreen and memory function for fast recalls of settings.
• Mobility: Supplied with a movable underframe with brakes for ideal ergonomic height.

Technical specifications (summary)

• Bending capacity (working length): 1.350 mm.
• Working thickness: 0.5 - 5 mm (typical; may vary with material).
• Temperature range: Adjustable, typically up to 600 °C.
• Heating time: Variable depending on material and thickness; optimized for efficiency.
• Connection voltage: 230 V.
• Electrical power consumption: 2.600 W.
• Dimensions (LxWxH): 2.090 x 1.320 x 1.900 mm.
• Weight: 350 kg.
• Distance between two bends: 140 - 620 mm (adjustable).

Technical characteristics

• Model type: Floor machine.
• Bending method: Automatic.
• Bending lines: Multiple (2 lower / 2 upper construction).
• Heating method: Upper and lower heating profiles (2 lower / 2 upper).
• Under heating units: 2.
• Modular extendable: No.
• Construction: 2 bottom lines / 2 top lines.
• Working length: 1.350 mm.
• Working thickness: 0.5 - 5 mm (section product).
• Connection voltage: 230 V.
• Electrical consumption: 2.600 W.
• Dimensions (LxWxH): 2.090 x 1.320 x 1.900 mm.
• Weight: 350 kg.
• Upper heating lines: 2.
• Distance between two bending lines: 140 - 620 mm.
• i-Series: Digital touchscreen and memory function to save settings and parameters.
