Induction motor SIE182T4
three-phase460 Vcast iron

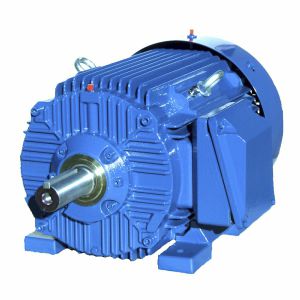

Induction motor - SIE182T4 - Cantoni Motor - three-phase / 460 V / cast iron
Induction motor - SIE182T4 - Cantoni Motor - three-phase / 460 V / cast iron
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
induction, three-phase
Voltage
460 V
Configuration
cast iron, squirrel-cage rotor
Protection class
IP55
Number of poles
4-pole
Cooling mechanism
IC411
Applications
industrial
Other characteristics
NEMA, high-efficiency
Power

2.2 kW
(2.99 hp)

Intensity

4.2 A

Torque

12.1 Nm
(8.924502 ft.lb)

Rotational speed

1,775 rpm, 1,800 rpm
(11,152.6539 rad.min-1, 11,309.7336 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Breakdown torque ratio [ 4 Winding connection ∆ Starting current ratio [ 9 Frequency [Hz] 60 Efficiency at 1/4 of full load [ 77.1% Efficiency at 2/4 of full load [ 85.8% Rated output [HP] 3 Efficiency at 3/4 of full load [ 88.5% Service factor [ 1.4 Efficiency at rated (full) load [ 89.5% Duty continuous Efficiency at 5/4 of full load [ 89.6% Power factor at 1/4 of full load [ 0.34 Power factor at 2/4 of full load [ 0.54 Power factor at 3/4 of full load [ 0.67 Power factor at rated (full) load [ 0.75 Starting torque ratio [ 3.5 Power factor at 5/4 of full load [ 0.80 Starting current [A] 38 Rated torque [Lb-Ft] 8.9 Frame size 182 Terminal box position left side Starting method DOL, PWS Possibility of terminal box rotation yes Insulation class F Bearing on D-side 63062ZC3
