NEMA motor ESg145T-6
inductionthree-phase460 V

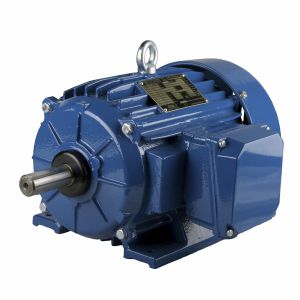

NEMA motor - ESg145T-6 - Cantoni Motor - induction / three-phase / 460 V
NEMA motor - ESg145T-6 - Cantoni Motor - induction / three-phase / 460 V
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
induction, three-phase
Voltage
460 V
Configuration
squirrel-cage rotor
Number of poles
6-pole
Cooling mechanism
IC411
Applications
industrial
Other characteristics
NEMA
Power

750 W
(1.02 hp)

Intensity

1.6 A

Torque

2.9 Nm
(2.13893 ft.lb)

Rotational speed

1,155 rpm, 1,200 rpm
(7,257.079 rad.min-1, 7,539.8224 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Starting current ratio [ 5.1 Frequency [Hz] 60 Efficiency at 1/4 of full load [ 66.2% Efficiency at 2/4 of full load [ 76.8% Rated output [HP] 1 Efficiency at 3/4 of full load [ 79.7% Service factor [ 1.4 Efficiency at rated (full) load [ 80.0% Duty continuous Efficiency at 5/4 of full load [ 79% Starting torque ratio [ 1.8 Starting current [A] 8.1 Efficiency class NEMA EPACT Frame size 145 Insulation class F Frequency converter supply on demand Direction of rotation CW/CCW Painting RAL5010 Climatic execution N
