NEMA motor ESg184T-8
inductionthree-phase460 V

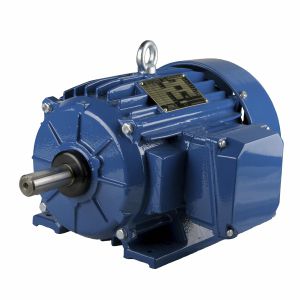

NEMA motor - ESg184T-8 - Cantoni Motor - induction / three-phase / 460 V
NEMA motor - ESg184T-8 - Cantoni Motor - induction / three-phase / 460 V
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
induction, three-phase
Voltage
460 V
Configuration
squirrel-cage rotor
Number of poles
8-pole
Cooling mechanism
IC411
Applications
industrial
Other characteristics
NEMA
Power

1.1 kW
(1.5 hp)

Intensity

2.6 A

Torque

2.4 Nm
(1.770149 ft.lb)

Rotational speed

875 rpm, 900 rpm
(5,497.7871 rad.min-1, 5,654.8668 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Starting current ratio [ 4.6 Frequency [Hz] 60 Efficiency at 1/4 of full load [ 60.6% Efficiency at 2/4 of full load [ 72.4% Rated output [HP] 1.5 Efficiency at 3/4 of full load [ 76.1% Service factor [ 1.4 Efficiency at rated (full) load [ 77.0% Duty continuous Efficiency at 5/4 of full load [ 76.3% Starting torque ratio [ 1.7 Starting current [A] 12 Efficiency class NEMA EPACT Frame size 184 Insulation class F Frequency converter supply on demand Direction of rotation CW/CCW Painting RAL5010 Climatic execution N
