Induction motor SIE404T6
three-phasecast ironsquirrel-cage rotor

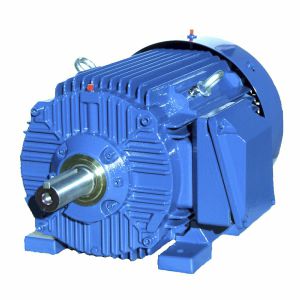

Induction motor - SIE404T6 - Cantoni Motor - three-phase / cast iron / squirrel-cage rotor
Induction motor - SIE404T6 - Cantoni Motor - three-phase / cast iron / squirrel-cage rotor
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
induction, three-phase
Configuration
cast iron, squirrel-cage rotor
Protection class
IP55
Number of poles
6-pole
Cooling mechanism
IC411
Applications
industrial
Other characteristics
NEMA, high-efficiency
Power

45 kW
(61.18 hp)

Intensity

72 A

Torque

357.9 Nm
(263.973493 ft.lb)

Rotational speed

1,192 rpm, 1,200 rpm
(7,489.5569 rad.min-1, 7,539.8224 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Breakdown torque ratio [ 2 Winding connection ∆ Starting current ratio [ 6 Frequency [Hz] 60 Efficiency at 2/4 of full load [ 93.7% Rated output [HP] 60 Efficiency at 3/4 of full load [ 94.4% Service factor [ 1.3 Efficiency at rated (full) load [ 94.5% Duty continuous Power factor at 2/4 of full load [ 0.68 Power factor at 3/4 of full load [ 0.78 Power factor at rated (full) load [ 0.82 Starting torque ratio [ 1.8 Starting current [A] 435 Rated torque [Lb-Ft] 264 Sound pressure level [dB] 67 Frame size 404 Sound power level [dB] 77 Terminal box position left side Starting method DOL, PWS Possibility of terminal box rotation yes
