Induction motor SIE143T2
three-phase460 Vcast iron

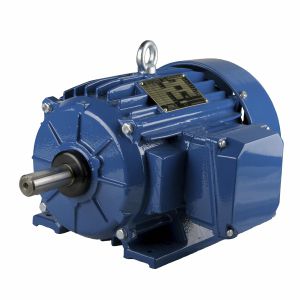

Induction motor - SIE143T2 - Cantoni Motor - three-phase / 460 V / cast iron
Induction motor - SIE143T2 - Cantoni Motor - three-phase / 460 V / cast iron
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
induction, three-phase
Voltage
460 V
Configuration
cast iron, squirrel-cage rotor
Protection class
IP55
Number of poles
2-pole
Cooling mechanism
IC411
Applications
industrial
Other characteristics
NEMA
Power

1.1 kW
(1.5 hp)

Intensity

2.1 A

Torque

3 Nm
(2.212686 ft.lb)

Rotational speed

3,540 rpm
(22,242.476 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Breakdown torque ratio [ 4.1 Winding connection ∆ Starting current ratio [ 9.5 Frequency [Hz] 60 Efficiency at 1/4 of full load [ 69.0% Efficiency at 2/4 of full load [ 79.8% Rated output [HP] 1.5 Efficiency at 3/4 of full load [ 83.2% Service factor [ 1.4 Efficiency at rated (full) load [ 84.0% Duty continuous Efficiency at 5/4 of full load [ 84.6% Power factor at 1/4 of full load [ 0.38 Power factor at 2/4 of full load [ 0.57 Power factor at 3/4 of full load [ 0.69 Power factor at rated (full) load [ 0.78 Starting torque ratio [ 3.5 Power factor at 5/4 of full load [ 0.83 Starting current [A] 20 Rated torque [Lb-Ft] 2.2 Frame size 143 Terminal box position left side Starting method DOL, PWS Possibility of terminal box rotation yes
