NEMA motor ESg215T-4
inductionthree-phasesquirrel-cage rotor

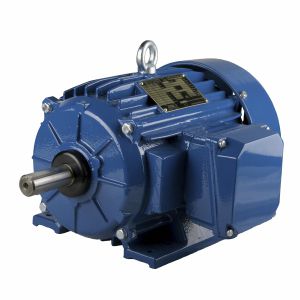

NEMA motor - ESg215T-4 - Cantoni Motor - induction / three-phase / squirrel-cage rotor
NEMA motor - ESg215T-4 - Cantoni Motor - induction / three-phase / squirrel-cage rotor
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
induction, three-phase
Configuration
squirrel-cage rotor
Number of poles
4-pole
Cooling mechanism
IC411
Applications
industrial
Other characteristics
NEMA
Power

7.5 kW
(10.2 hp)

Intensity

11.9 A

Torque

1.8 Nm
(1.327612 ft.lb)

Rotational speed

1,745 rpm, 1,800 rpm
(10,964.1584 rad.min-1, 11,309.7336 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Starting current ratio [ 6.6 Frequency [Hz] 60 Efficiency at 1/4 of full load [ 87.1% Efficiency at 2/4 of full load [ 90.7% Rated output [HP] 10 Efficiency at 3/4 of full load [ 90.8% Service factor [ 1.3 Efficiency at rated (full) load [ 89.5% Duty continuous Efficiency at 5/4 of full load [ 87.2% Starting torque ratio [ 1.8 Starting current [A] 78.5 Efficiency class NEMA EPACT Frame size 215 Insulation class F Frequency converter supply on demand Direction of rotation CW/CCW Painting RAL5010 Climatic execution N
