Induction motor ESg286TS-2
three-phase460 Vsquirrel-cage rotor

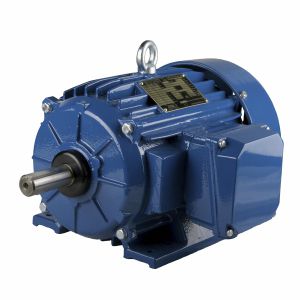

Induction motor - ESg286TS-2 - Cantoni Motor - three-phase / 460 V / squirrel-cage rotor
Induction motor - ESg286TS-2 - Cantoni Motor - three-phase / 460 V / squirrel-cage rotor
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
induction, three-phase
Voltage
460 V
Configuration
squirrel-cage rotor
Number of poles
2-pole
Cooling mechanism
IC411
Applications
industrial
Other characteristics
NEMA
Power

22 kW
(29.91 hp)

Intensity

2.9 A

Torque

2.9 Nm
(2.13893 ft.lb)

Rotational speed

3,535 rpm, 3,600 rpm
(22,211.0601 rad.min-1, 22,619.4671 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Starting current ratio [ 5.7 Frequency [Hz] 60 Efficiency at 1/4 of full load [ 85.4% Efficiency at 2/4 of full load [ 90.5% Rated output [HP] 30 Efficiency at 3/4 of full load [ 91.3% Service factor [ 1.15 Efficiency at rated (full) load [ 91.0% Duty continuous Efficiency at 5/4 of full load [ 90.2% Starting torque ratio [ 2.45 Starting current [A] 200 Efficiency class NEMA EPACT Frame size 286 Insulation class F Frequency converter supply on demand Direction of rotation CW/CCW Painting RAL5010 Climatic execution N
