NEMA motor SIE284TS2
inductionthree-phase460 V

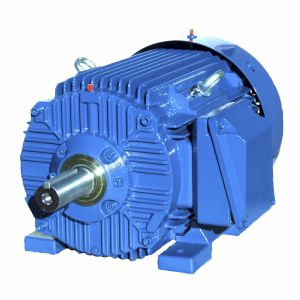

NEMA motor - SIE284TS2 - Cantoni Motor - induction / three-phase / 460 V
NEMA motor - SIE284TS2 - Cantoni Motor - induction / three-phase / 460 V
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
induction, three-phase
Voltage
460 V
Configuration
cast iron, squirrel-cage rotor
Protection class
IP55
Number of poles
2-pole
Cooling mechanism
IC411
Applications
industrial
Other characteristics
NEMA, high-efficiency
Power

18.5 kW
(25.15 hp)

Intensity

29.5 A

Torque

50 Nm
(36.878107 ft.lb)

Rotational speed

3,555 rpm, 3,600 rpm
(22,336.7238 rad.min-1, 22,619.4671 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Breakdown torque ratio [ 3 Winding connection ∆ Starting current ratio [ 1 Frequency [Hz] 60 Efficiency at 1/4 of full load [ 85.9% Efficiency at 2/4 of full load [ 91.3% Rated output [HP] 25 Efficiency at 3/4 of full load [ 92.4% Service factor [ 1.2 Efficiency at rated (full) load [ 92.4% Duty continuous Efficiency at 5/4 of full load [ 91.9% Power factor at 1/4 of full load [ 0.54 Power factor at 2/4 of full load [ 0.74 Power factor at 3/4 of full load [ 0.82 Power factor at rated (full) load [ 0.86 Starting torque ratio [ 3.5 Power factor at 5/4 of full load [ 0.87 Starting current [A] 29.5 Rated torque [Lb-Ft] 36.9 Frame size 284 Terminal box position left side Starting method DOL, PWS Possibility of terminal box rotation yes
