NEMA motor ESg145T-4A
inductionthree-phase460 V

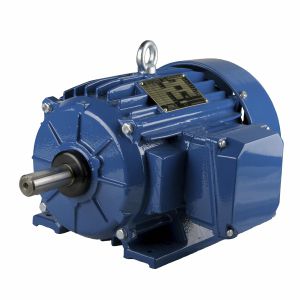

NEMA motor - ESg145T-4A - Cantoni Motor - induction / three-phase / 460 V
NEMA motor - ESg145T-4A - Cantoni Motor - induction / three-phase / 460 V
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
induction, three-phase
Voltage
460 V
Configuration
squirrel-cage rotor
Number of poles
4-pole
Cooling mechanism
IC411
Applications
industrial
Other characteristics
NEMA, high-efficiency
Power

1.1 kW
(1.5 hp)

Intensity

2.1 A

Torque

3.7 Nm
(2.72898 ft.lb)

Rotational speed

1,745 rpm, 1,800 rpm
(10,964.1584 rad.min-1, 11,309.7336 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Starting current ratio [ 7.6 Frequency [Hz] 60 Efficiency at 1/4 of full load [ 69.6% Efficiency at 2/4 of full load [ 80.0% Rated output [HP] 1.5 Efficiency at 3/4 of full load [ 83.2% Service factor [ 1.4 Efficiency at rated (full) load [ 84.0% Duty continuous Efficiency at 5/4 of full load [ 83.5% Starting torque ratio [ 2.65 Starting current [A] 15.9 Efficiency class NEMA EPACT Frame size 145 Insulation class F Frequency converter supply on demand Direction of rotation CW/CCW Painting RAL5010 Climatic execution N
