Induction motor ESg182T-2
three-phase460 Vsquirrel-cage rotor

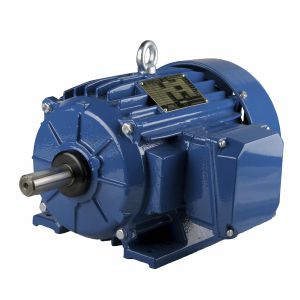

Induction motor - ESg182T-2 - Cantoni Motor - three-phase / 460 V / squirrel-cage rotor
Induction motor - ESg182T-2 - Cantoni Motor - three-phase / 460 V / squirrel-cage rotor
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
induction, three-phase
Voltage
460 V
Configuration
squirrel-cage rotor
Number of poles
2-pole
Cooling mechanism
IC411
Applications
industrial
Other characteristics
NEMA
Power

2.2 kW
(2.99 hp)

Intensity

3.8 A

Torque

2.8 Nm
(2.065174 ft.lb)

Rotational speed

3,510 rpm, 3,600 rpm
(22,053.9804 rad.min-1, 22,619.4671 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Starting current ratio [ 7.3 Frequency [Hz] 60 Efficiency at 1/4 of full load [ 72.9% Efficiency at 2/4 of full load [ 82.1% Rated output [HP] 3 Efficiency at 3/4 of full load [ 84.8% Service factor [ 1.4 Efficiency at rated (full) load [ 85.5% Duty continuous Efficiency at 5/4 of full load [ 84.9% Starting torque ratio [ 2.2 Starting current [A] 27.6 Efficiency class NEMA EPACT Frame size 182 Insulation class F Frequency converter supply on demand Direction of rotation CW/CCW Painting RAL5010 Climatic execution N
