Induction motor SIE286TS2
three-phase460 Vcast iron

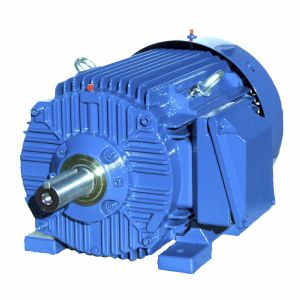

Induction motor - SIE286TS2 - Cantoni Motor - three-phase / 460 V / cast iron
Induction motor - SIE286TS2 - Cantoni Motor - three-phase / 460 V / cast iron
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
induction, three-phase
Voltage
460 V
Configuration
cast iron, squirrel-cage rotor
Protection class
IP55
Number of poles
2-pole
Cooling mechanism
IC411
Applications
industrial
Other characteristics
NEMA, high-efficiency
Power

22 kW
(29.91 hp)

Intensity

35.2 A

Torque

60.3 Nm
(44.474998 ft.lb)

Rotational speed

3,540 rpm, 3,600 rpm
(22,242.476 rad.min-1, 22,619.4671 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Breakdown torque ratio [ 3 Winding connection ∆ Starting current ratio [ 6.1 Frequency [Hz] 60 Efficiency at 1/4 of full load [ 86.0% Efficiency at 2/4 of full load [ 91.2% Rated output [HP] 30 Efficiency at 3/4 of full load [ 92.0% Service factor [ 1.2 Efficiency at rated (full) load [ 91.7% Duty continuous Efficiency at 5/4 of full load [ 90.9% Power factor at 1/4 of full load [ 0.64 Power factor at 2/4 of full load [ 0.80 Power factor at 3/4 of full load [ 0.85 Power factor at rated (full) load [ 0.87 Starting torque ratio [ 3.5 Power factor at 5/4 of full load [ 0.88 Starting current [A] 215 Rated torque [Lb-Ft] 44.5 Frame size 286 Terminal box position left side Starting method DOL, PWS Possibility of terminal box rotation yes Insulation class F Bearing on D-side 63112ZC3
