NEMA motor ESg254T-4
inductionthree-phase460 V

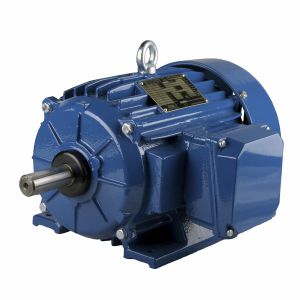

NEMA motor - ESg254T-4 - Cantoni Motor - induction / three-phase / 460 V
NEMA motor - ESg254T-4 - Cantoni Motor - induction / three-phase / 460 V
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
induction, three-phase
Voltage
460 V
Configuration
squirrel-cage rotor
Number of poles
4-pole
Cooling mechanism
IC411
Applications
industrial
Other characteristics
NEMA
Power

11 kW
(14.96 hp)

Intensity

17.2 A

Torque

2.65 Nm
(1.95454 ft.lb)

Rotational speed

1,760 rpm, 1,800 rpm
(11,058.4061 rad.min-1, 11,309.7336 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Starting current ratio [ 6.2 Frequency [Hz] 60 Efficiency at 1/4 of full load [ 86.3% Efficiency at 2/4 of full load [ 90.5% Rated output [HP] 15 Efficiency at 3/4 of full load [ 91.0% Service factor [ 1.3 Efficiency at rated (full) load [ 91.0% Duty continuous Efficiency at 5/4 of full load [ 89.8% Starting torque ratio [ 2.2 Starting current [A] 106 Efficiency class NEMA EPACT Frame size 254 Insulation class F Frequency converter supply on demand Direction of rotation CW/CCW Painting RAL5010 Climatic execution N
