Induction motor SIE213T2
three-phase460 Vcast iron

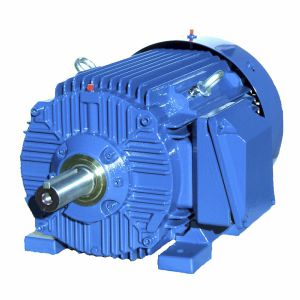

Induction motor - SIE213T2 - Cantoni Motor - three-phase / 460 V / cast iron
Induction motor - SIE213T2 - Cantoni Motor - three-phase / 460 V / cast iron
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
induction, three-phase
Voltage
460 V
Configuration
cast iron, squirrel-cage rotor
Protection class
IP55
Number of poles
2-pole
Cooling mechanism
IC411
Applications
industrial
Other characteristics
NEMA, high-efficiency
Power

5.5 kW
(7.48 hp)

Intensity

8.5 A

Torque

15.2 Nm
(11.210945 ft.lb)

Rotational speed

3,525 rpm, 3,600 rpm
(22,148.2282 rad.min-1, 22,619.4671 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Breakdown torque ratio [ 3.15 Winding connection ∆ Starting current ratio [ 8.9 Frequency [Hz] 60 Efficiency at 1/4 of full load [ 82.5% Efficiency at 2/4 of full load [ 88.7% Rated output [HP] 7.5 Efficiency at 3/4 of full load [ 90.0% Service factor [ 1.3 Efficiency at rated (full) load [ 89.5% Duty continuous Efficiency at 5/4 of full load [ 89.4% Power factor at 1/4 of full load [ 0.61 Power factor at 2/4 of full load [ 0.81 Power factor at 3/4 of full load [ 0.89 Power factor at rated (full) load [ 0.92 Starting torque ratio [ 3.5 Power factor at 5/4 of full load [ 0.94 Starting current [A] 76 Rated torque [Lb-Ft] 11.2 Frame size 213 Terminal box position left side Starting method DOL, PWS Possibility of terminal box rotation yes Insulation class F Bearing on D-side 63082ZC3
