Induction motor SIE254T6
three-phase460 Vcast iron

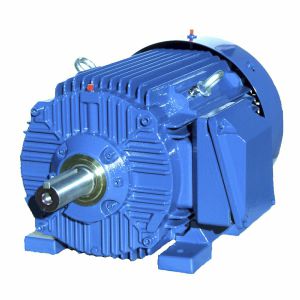

Induction motor - SIE254T6 - Cantoni Motor - three-phase / 460 V / cast iron
Induction motor - SIE254T6 - Cantoni Motor - three-phase / 460 V / cast iron
Add to favorites
Compare this product
Go to the Cantoni Motor website for more information

Characteristics

Type
induction, three-phase
Voltage
460 V
Configuration
cast iron, squirrel-cage rotor
Protection class
IP55
Number of poles
6-pole
Cooling mechanism
IC411
Applications
industrial
Other characteristics
NEMA, high-efficiency
Power

5.5 kW
(7.48 hp)

Intensity

10.4 A

Torque

45 Nm
(33.190297 ft.lb)

Rotational speed

1,185 rpm, 1,200 rpm
(7,445.5746 rad.min-1, 7,539.8224 rad.min-1)

Operating temperature

40 °C
(104 °F)

Description

Breakdown torque ratio [ 3.5 Winding connection ∆ Starting current ratio [ 7.5 Frequency [Hz] 60 Efficiency at 1/4 of full load [ 81.1% Efficiency at 2/4 of full load [ 88.6% Rated output [HP] 7.5 Efficiency at 3/4 of full load [ 90.6% Service factor [ 1.3 Efficiency at rated (full) load [ 91.0% Duty continuous Efficiency at 5/4 of full load [ 90.9% Power factor at 1/4 of full load [ 0.34 Power factor at 2/4 of full load [ 0.54 Power factor at 3/4 of full load [ 0.67 Power factor at rated (full) load [ 0.74 Starting torque ratio [ 3.5 Power factor at 5/4 of full load [ 0.78 Starting current [A] 77.5 Rated torque [Lb-Ft] 33.2 Frame size 254 Terminal box position left side Starting method DOL, PWS Possibility of terminal box rotation yes Insulation class F Bearing on D-side 63092ZC3
