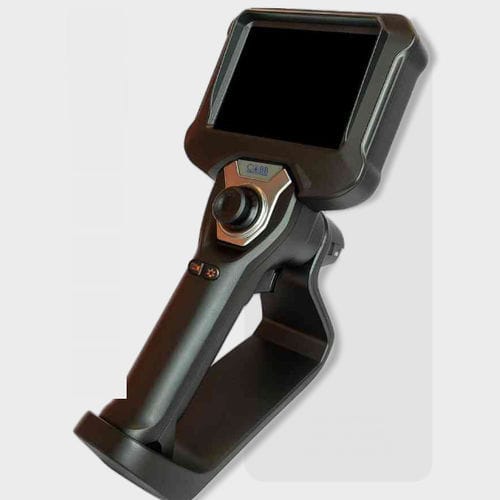

Flexible video endoscope GRZ-2.0

for remote visual inspectionarticulatedsmall-diameter

Product overview
Ultra high-definition micro video endoscope designed to deliver sharp, clear and high-contrast images even in extremely limited access conditions. The 360° articulating inspection tip controlled via joystick provides complete control of the inspection area. Available lengths: 1.0 m · 1.5 m · 2.0 m

Key Features

• 5” TOUCH LCD SCREEN: color anti-glare TFT LCD touchscreen for direct, immediate access to operational controls.
• ERGONOMIC JOYSTICK with full 360° probe articulation and lock/unlock articulation system to hold desired angle for stable inspection.
• NOTE ANNOTATION AND IMAGE MANAGEMENT FUNCTION: title photos and add notes directly on-screen during inspections to improve documentation and reporting.
• HDMI CONNECTION: allows connection to an external monitor for larger viewing and real-time sharing.
• INTEGRATED WI-FI: enables real-time image transmission to mobile devices.
• HIGH-EFFICIENCY LED ILLUMINATION: LED illumination positioned at the probe tip for optimal visibility in low-light or confined spaces.

Designed for Extreme Environments
Constructed with durable materials and a protective tungsten braided insertion tube; engineered to provide reliable performance in demanding working conditions.

Integrated Image Optimization
Advanced onboard software processes images in real time for sharp, analysis-ready inspection results.

Technical table (source table rows)
External diameter — 2.0 mm
Probe length — 1.1 m / 1.5 m / 2.0 m
Resolution — 160,000 pixel
Ingress protection — IP67
Monitor — 5.0” color TFT LCD TOUCH SCREEN
Viewing direction — forward 0°
Field of view — 90°
Tip articulation — 4-way
Articulation angle — 180° and beyond
Articulation control — mechanical joystick (360°)
Digital zoom — 7x
Protective sheath — tungsten braided
Light intensity control — push-button levels
Depth of field — from 5 mm to infinity
Illumination — LEDs on probe tip
White balance — automatic
Anti-reflection system — automatic
Photo format — JPEG
Video recording — MP4
Video outputs — HDMI / USB-C / Wi‑Fi
Memory card — SD up to 32 GB
Main menu functions — date/time, video, photo, zoom, mirror effect, on-screen notes
Signal standard — PAL/NTSC
Power — rechargeable battery; mains 110-220V

Technical specifications

• Model family: GRZ series
• External diameter: 2.0 mm
• Probe lengths: 1.1 m, 1.5 m, 2.0 m
• Resolution: 160,000 pixel
• Ingress protection: IP67
• Monitor: 5.0” color TFT LCD touch screen
• Viewing direction: forward 0°
• Field of view: 90°
• Tip articulation: 4-way (360° joystick control)
• Articulation angle: 180° and beyond
• Digital zoom: 7x
• Protective sheath: tungsten braided
• Light intensity control: push-button levels
• Depth of field: from 5 mm to infinity
• Illumination: LEDs on probe tip
• White balance: automatic
• Anti-reflection: automatic
• Photo storage format: JPEG
• Video recording format: MP4
• Video outputs: HDMI / USB-C / Wi‑Fi
• Memory card: SD card up to 32 GB
• Main menu functions: date/time, video, photo, zoom, mirror effect, on-screen notes
• Signal standard: PAL/NTSC
• Power: rechargeable battery, mains 110-220V
• Available variant codes: GRZ2.0-1100/4 (L = 1.0 m), GRZ2.0-1500/4 (L = 1.5 m), GRZ2.0-2000/4 (L = 2.0 m)
