Flexible video endoscope GTD6.0/DUAL VISION series

for pipeworkfor high-pressure laminatefor pipe inspection

Product overview

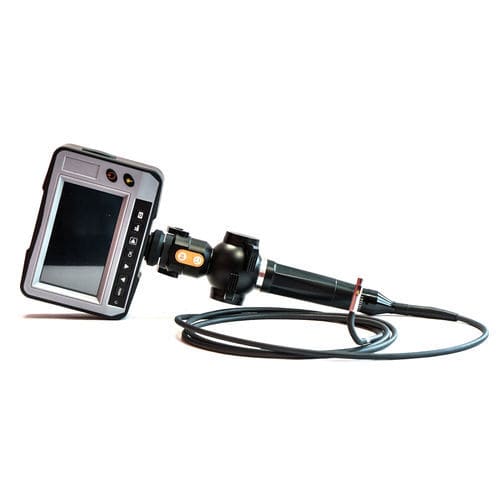

The COBB Fibre Ottiche GTD6.0 / DUAL VISION flexible video endoscope delivers combined forward and side viewing in a single, modular instrument to reduce inspection time and limit probe repositioning. Designed for industrial inspection of pipelines and confined spaces, it balances visibility and flexibility while ensuring continuous operation across multiple probe lengths.

Key features

• Dual-camera system: 0° forward-view and 90° side-view cameras, switchable via a dedicated handle button.
• 6.0 mm insertion diameter suitable for pipeline and confined-space inspection.
• Probe lengths available from 1.5 m to 10 m to match inspection depth requirements.
• Four-way articulating tip with bending exceeding 180° for effective retrograde viewing.
• Rotatable, detachable monitor enabling modular use and connection of different probes.
• 4.3” color LCD with anti-glare coating and integrated image optimization functions.
• High-efficiency LED illumination positioned at the probe tip for improved lighting in critical conditions.
• Advanced onboard software with image processing and enhancement functions.
• Tungsten-braided protective sheath for high wear resistance in harsh environments.
• Ergonomic, intuitive control layout for field operation.

Applications

• Inspection of industrial pipelines, ducts and confined spaces.
• Detection of cracks, foreign objects and wear.
• Weld inspection and verification of internal components not directly accessible.

Additional information

• Front and side view in one instrument reduces the need for probe repositioning during inspections.
• Modular system design allows connection of different probes for varied applications.

Technical specifications

• Model: GTD6.0 / DUAL VISION
• Brand: COBB Fibre Ottiche
• Insertion diameter: 6.0 mm
• Probe lengths available: 1.5 m, 2.0 m, 3.0 m, 4.0 m, 5.0 m, 6.0 m, 7.0 m, 8.0 m, 10 m
• Cameras: dual (0° forward, 90° side)
• Field of view: forward 120°; side 90°
• Articulation: four-way mechanical articulation, bending angles exceeding 180° (retrograde view)
• Display: 4.3” color LCD with anti-glare and image optimization
• Illumination: next-generation high-efficiency LED at probe tip
• Sheath: tungsten braided, highly wear-resistant
• Controls: dedicated handle button to switch viewing angles; brightness adjustment button
• Onboard software: multiple image processing and enhancement functions; white balance and anti-glare automatic
• Image formats: photo jpeg/bmp/jpg; video AVI; SD card slot; USB port for PC connection
• Sensors: forward 0° CMOS 1/8” (approx. 480,000 px); side 90° CMOS 1/10” (approx. 450,000 px)
• Signal: PAL/NTSC
• Ingress protection: IP67
• Power: 4200mAh lithium battery and/or mains 100–240 VAC
