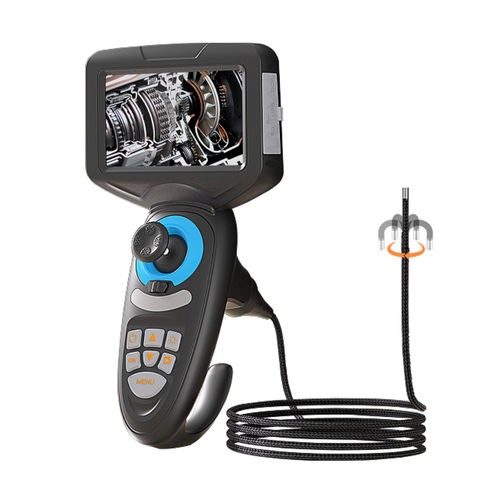

Flexible video endoscope AZR

for LEDsfor remote visual inspectionsmall-diameter

Overview
The COBB Fibre Ottiche AZR flexible video endoscopes are engineered for reliable professional performance in a compact, lightweight format tailored to industrial inspection tasks. The ergonomic, well-balanced chassis enables comfortable one-handed operation, reducing operator fatigue during prolonged use and facilitating rapid checks in confined spaces.

Key operational features

• Ergonomic, well-balanced design for one-handed operation
• Four-way articulating inspection tip controlled via an ergonomic joystick
• Mechanical four-way articulation with bending angles >180° (retrograde view) for confined or hard-to-reach areas
• Real-time live image transmission to iOS and Android smartphones and tablets
• High image sharpness with lightweight construction and integrated illumination (fiber optics + LED)
• 4.5" colour LCD display with anti-glare technology and onboard image optimization
• Advanced onboard software with multiple image processing and enhancement functions

Typical uses

• Routine maintenance and periodic inspections
• Industrial visual verification and quality control
• Rapid inspections and confined-space assessments where speed and maneuverability are essential

Available configurations

• 6 mm diameter → lengths: 1.0 m, 2.0 m, 3.0 m
• 4 mm diameter → lengths: 1.5 m, 2.0 m, 3.0 m
• 2.8 mm diameter → length: 1.2 m

Additional notes
The AZR series combines practical handling, technical performance and cost efficiency, providing a ready-to-use inspection solution without compromising image quality or structural reliability. Ideal for technicians requiring fast deployment and continuous operation in industrial environments.

Characteristics / technical specifications

• Series / Model: AZR series
• Diameter options: 6 mm, 4 mm, 2.8 mm
• Length options: 1.0 m, 1.2 m, 1.5 m, 2.0 m, 3.0 m (depending on diameter)
• Tip articulation: four-way mechanical articulation, bending angle >180° (retrograde view)
• Tip control: ergonomic joystick for four-way articulation
• Display: 4.5" colour LCD with anti-glare technology
• Image features: integrated image optimization and multiple image processing/enhancement functions
• Connectivity: real-time live image transmission to iOS and Android devices (WiFi)
• Operating ergonomics: compact, lightweight design for one-handed operation
