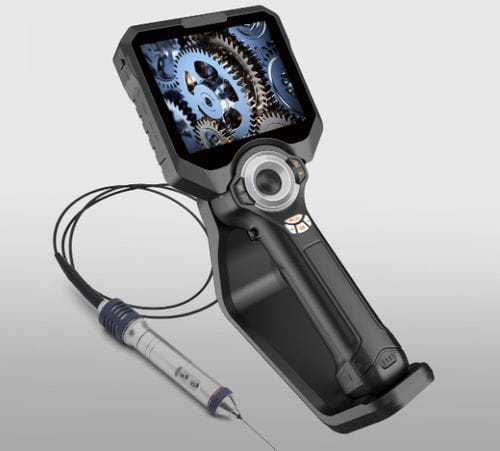

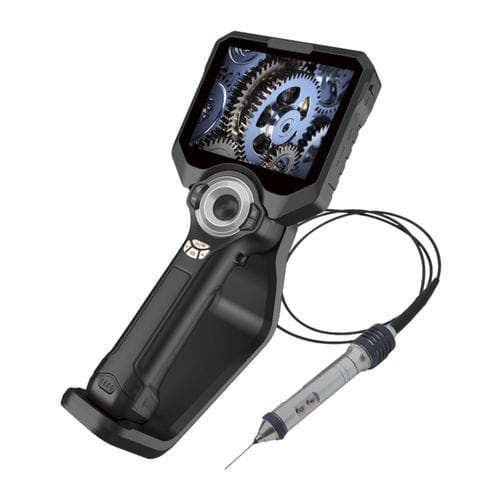

Flexible video endoscope RVM series

for turbine engine inspectionfor machinesfor pipe inspection

Overview
The RVM series represents a major step forward in industrial inspection: high-performance rigid video endoscopes engineered to withstand harsh environments while delivering superior image quality.

Key Features

• Interchangeable probes for maximum versatility across different applications and inspection needs
• Ultra-small probe diameters available below 1.0 mm outer diameter
• Wide range of probe diameters from 0.8 mm up to 8.0 mm
• Forward-view (0°), side-view (90°) or dual-camera configurations (0° and 90°); optional 30° and 45° viewing angles
• Advanced image controls: gamma correction, gain, sharpness, noise reduction, white balance, chromaticity and contrast adjustment
• Annotation and measurement: add text notes or graphic markings directly on the image, with integrated crosshair ruler for size estimation
• Instant sharing and connectivity: HDMI output and integrated Wi‑Fi for real-time transfer, sharing and external display
• Advanced illumination using high-brightness fiber optic light; optional UV and IR sources for specialized inspections

Modular Design

• Detachable handle and 270° rotatable rigid tube for operational flexibility
• Small-diameter rigid tubes (0.8 mm to 2.8 mm) for extremely limited access holes
• 6 mm and 8 mm versions equipped with Full HD 2MP cameras for enhanced image detail
• Fully customizable configurations: lengths, diameters, resolutions, fields of view and illumination systems

Additional Key Functions

• Touchscreen monitor with integrated editing functions for intuitive operation
• Special image modes: mirror, color inversion, zoom and measurement ruler
• Waterproof construction to ensure reliability in humid or liquid-contact environments

Typical Applications

• Aerospace maintenance
• Precision mechanical component inspection
• Firearm barrel and security system inspection
• Industrial pipeline and plant verification

Specifications / Technical data

• Series: RVM
• Probe outer diameters: from 0.8 mm up to 8.0 mm; ultra-small probes below 1.0 mm available
• Viewing angles: 0° (forward), 90° (side), dual-camera (0° & 90°); optional 30° and 45°
• Cameras: Full HD 2MP on 6 mm and 8 mm versions
• Image adjustments: gamma, gain, sharpness, noise reduction, white balance, chromaticity, contrast
• Annotation/measurement: text notes, graphic markings, integrated crosshair ruler
• Connectivity: HDMI output and integrated Wi‑Fi for real-time transmission and external display
• Monitor: integrated touchscreen with editing functions
• Illumination: high-brightness fiber optic illumination; optional UV and IR sources
• Mechanical: detachable handle; 270° rotatable rigid tube
• Construction: waterproof
• Customization: configurable lengths, diameters, resolutions, fields of view and illumination systems
