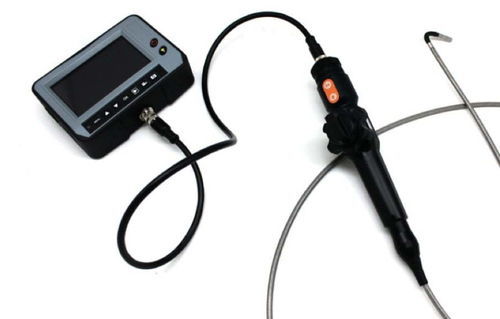

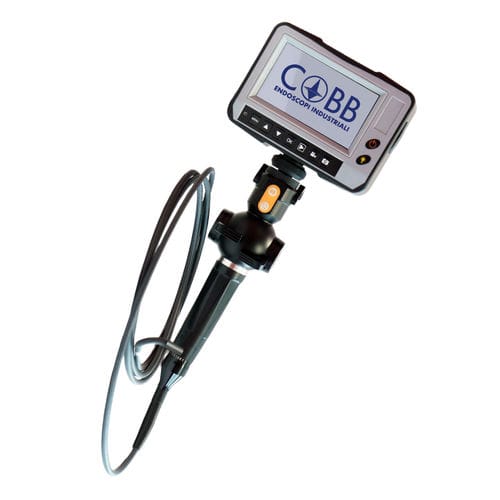

Flexible video endoscope GTD series

for pipe inspectionarticulatedsmall-diameter

Overview
The COBB Fibre Ottiche GTD flexible video endoscope is engineered for industrial inspections that require a single modular instrument to cover multiple applications. The system supports interchangeable probes and features a rotatable, detachable monitor to adapt to varied inspection environments while reducing the need for multiple dedicated devices.

Key features

• Available outer diameters: 4.0 mm and 5.5 mm
• Probe lengths: from 1.5 m up to 10 m (depending on diameter)
• Four-way articulating inspection tip with bending angles exceeding 180° for effective retrograde viewing
• High-efficiency dimmable LED illumination
• Insertion tube protected by a tungsten braided sheath for high wear resistance
• Modular design with rotatable, detachable monitor allowing easy probe interchangeability
• IP67-rated sealing for use in demanding environments

Applications

• Inspection of industrial pipelines and confined spaces
• Detection of cracks, foreign objects and wear
• Weld inspections and verification of internal components not directly accessible
• Inspection of bends and internal surfaces requiring retrograde viewing

Display & software
Equipped with a 4.3" color LCD with anti-glare treatment and integrated image optimization. Onboard software provides image processing and enhancement functions to support detailed inspection analysis.

Technical specifications

• Model / series: GTD
• Outer diameters: 4.0 mm; 5.5 mm
• Probe lengths: 1.5 m; 2.0 m; 3.0 m; 5.0 m; (5.5 mm also 8.0 m and 10.0 m)
• Articulation: four-way mechanical articulation; bending angle >180° (retrograde view)
• Insertion tube protection: tungsten braided sheath
• Illumination: high-efficiency dimmable LED
• Display: 4.3" color LCD with anti-glare and image optimization
• Monitor: rotatable and detachable; modular probe system
• Onboard software: image processing and enhancement functions
• Sealing: IP67
• Sensor: VGA CMOS 1/8" (approx. 480,000 pixels)
• Recording: photo (jpeg/bmp/jpg), video (AVI); SD card slot; USB port
• Power: 4200 mAh lithium battery and/or AC 100-220/240 VAC

Variants and codes (excerpt)

• GTD Ø 4.0 mm: example codes GTD4.0-1500/0, GTD4.0-2000/2, GTD4.0-3000/4, GTD4.0-5000/2 (variants with/without articulation and multiple lengths)
• GTD Ø 5.5 mm: example codes GTD5.5-1500/0, GTD5.5-2000/2, GTD5.5-3000/4, GTD5.5-10000/4 (variants up to 10 m)
