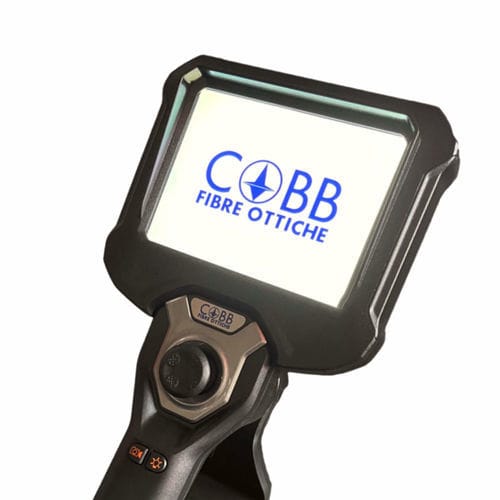

Flexible video endoscope LHC-DUAL VISION

for machinesfor tanksfor pipe inspection

Overview
The COBB Fibre Ottiche LHC flexible video endoscope is an advanced inspection instrument combining forward (0°) and side (90°) viewing through a dual‑camera system with instant selection. Rapid switching between the cameras via a dedicated handle button enables continuous inspection without removing or rotating the probe. Available in 4.0 mm and 6.5 mm diameters and lengths from 1.5 m to 5 m, the system features a four‑way articulating tip controlled by a joystick, a 5” anti‑glare TFT LCD and integrated onboard software for immediate image processing. The stainless steel insertion tube provides resistance to crushing and immersion while maintaining lightweight handling for professional continuous use.

Key features

• Dual‑camera system with instantly selectable 0° (forward) and 90° (side) views
• One‑handed joystick control for tip articulation and camera switching
• Dedicated handle button for fast camera switching during continuous inspection
• Automatic brightness adjustment with anti‑reflection technology
• Tip articulation lock to hold the desired position
• Advanced menu to adjust camera settings and review photos/videos on the 5” monitor
• HDMI output for external displays, USB‑C and integrated Wi‑Fi for real‑time transmission
• Robust stainless steel braided insertion tube resistant to crushing and immersion in water or oils
• 5” TFT LCD monitor, 1280 × 720 (HD) resolution
• Rechargeable lithium‑ion battery providing >4 hours operating autonomy; additional battery compartment available
• Continuous power mode allowing direct connection to 220VAC for unlimited operation

Recommended use
Designed for inspections requiring true dual vision, compact probe diameters and precise control in complex, articulated or hard‑to‑reach environments such as industrial assemblies, piping, tanks and maintenance inspections.

Technical specifications

• Model / Series: LHC
• Probe diameters: 4.0 mm and 6.5 mm
• Available lengths: 1.5 m to 5.0 m (varies by diameter)
• Viewing angles: dual cameras providing 0° and 90° views
• Tip articulation: four‑way articulating tip, joystick‑controlled
• Articulation lock: dedicated lock/unlock button
• Display: 5” anti‑glare TFT LCD (1280 × 720 px)
• Image processing: integrated onboard software for immediate processing
• Outputs: HDMI, USB‑C; Wi‑Fi for real‑time image transmission
• Power: rechargeable Li‑ion battery (>4 h); additional battery compartment; continuous power via 220VAC
• Construction: stainless steel braided insertion tube; rated to resist crushing forces and immersion in liquids (water/oils)
• Control: one‑handed joystick operation; dedicated camera switch button on handle
• Recording: photos (JPEG), video (MP4); SD card slot up to 32 GB
• Protection rating: IP67
