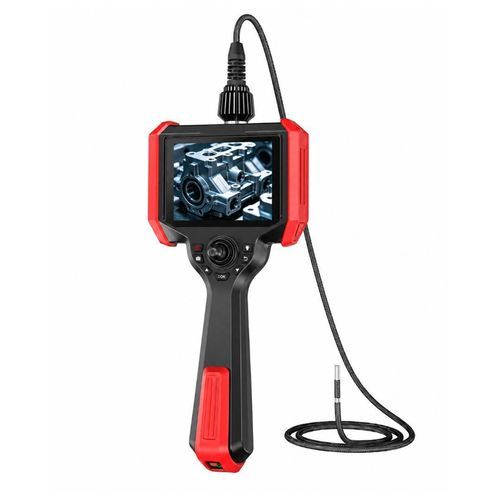

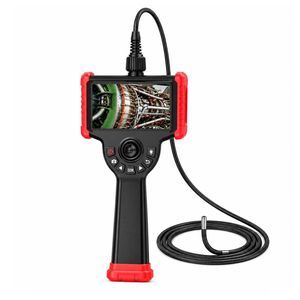

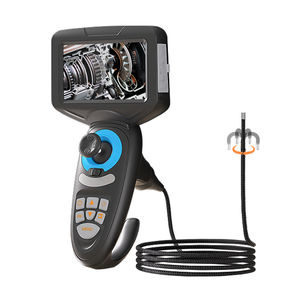

Remote visual inspection video endoscope NZL

articulatedUSBwaterproof

Overview

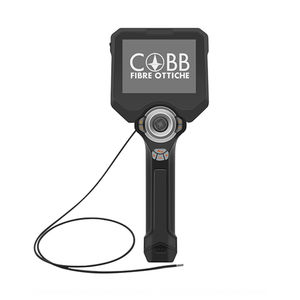

COBB NZL is a modular industrial videoendoscopy system designed to adapt to different inspection needs through rapidly interchangeable probes. A single main unit can be configured with probes of Ø2.0 mm, Ø2.8 mm, Ø3.9 mm and Ø6.0 mm, selecting diameter, optical configuration, illumination and length according to the application.

Key features

• Rapidly interchangeable probes in diameters Ø2.0 mm, Ø2.8 mm, Ø3.9 mm and Ø6.0 mm
• 5" industrial LCD with adjustable backlight
• 360° articulation in articulating configurations to control probe tip orientation
• Photo and video capture with still, zoom, rotation/flip, playback and file management functions
• Integrated Wi‑Fi for wireless connection and transfer
• HDMI output and Type‑C port, TF card slot
• Standard 32 GB memory, expandable to 128 GB
• Rechargeable lithium battery runtime ≥ 4 hours
• IP54 protection for the main unit; IP67 certified for Ø3.9 and Ø6.0 mm probes
• Tungsten-braided sheaths with diameter-specific construction

Rapidly interchangeable probes

• Ø2.0 mm — available lengths: 1 m, 2 m, 3 m
• Ø2.8 mm — available lengths: 1 m, 2 m, 3 m
• Ø3.9 mm — available lengths: from 1 m up to 6 m; documented dual view at 3 m
• Ø6.0 mm — available lengths: from 1 m up to 10 m
• Optical configuration, depth of field, resolution, illumination and maximum articulation angle vary depending on the selected probe

Three viewing configurations

• Forward view: available for Ø2.0 · Ø2.8 · Ø3.9 · Ø6.0 mm
• Lateral view: available for Ø2.0 · Ø2.8 · Ø3.9 · Ø6.0 mm
• Dual view: available for Ø2.8 · Ø3.9 · Ø6.0 mm

Illumination

• Ø2.0 and Ø2.8 mm probes: integrated LED illumination
• Ø3.9 and Ø6.0 mm probes: high-power rear LED with light transmission via fiber optics
• Lighting solution tailored to probe diameter and configuration

Capture and inspection management

• Photo and video capture directly from the unit
• Functions: snapshot during recording, still capture, zoom, rotation/flip, playback, delete files
• Additional features: grayscale, timestamp watermark, customizable annotations, file prefix with incremental numbering, on-screen grid and visual references
• Wi‑Fi connection for transfer and wireless linking

Specifications / technical data

• Model: NZL
• Display: 5" industrial LCD with adjustable backlight
• Probes: Ø2.0 / Ø2.8 / Ø3.9 / Ø6.0 mm (lengths as above)
• Articulation: 360° in articulating configurations
• Viewing: forward, lateral, dual (see availability by diameter)
• Illumination: integrated LED (Ø2.0 and Ø2.8); rear LED + fiber optics (Ø3.9 and Ø6.0)
• Memory: 32 GB standard, expandable up to 128 GB (TF slot)
• Connectivity: Wi‑Fi, HDMI output, Type‑C port
• Battery runtime: ≥ 4 hours (rechargeable lithium battery)
• Protection: IP54 for main unit; IP67 for Ø3.9 and Ø6.0 mm probes (Ø2.0 and Ø2.8: not documented)
• Sheaths: tungsten braid, specific to probe diameter
