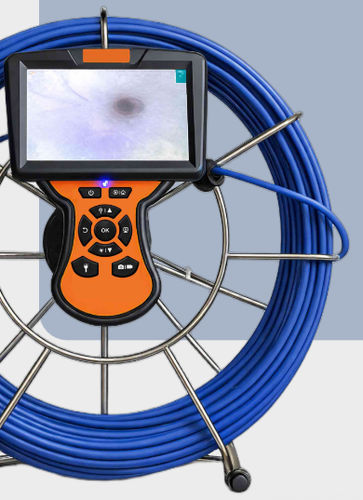

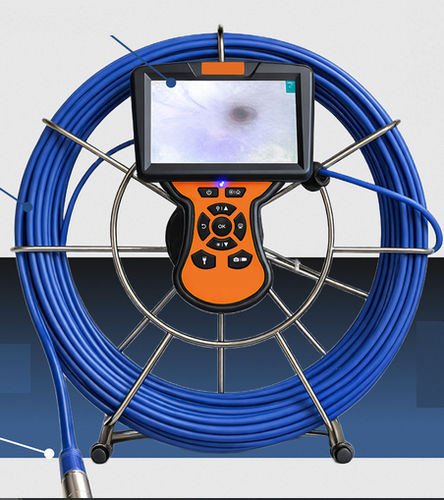

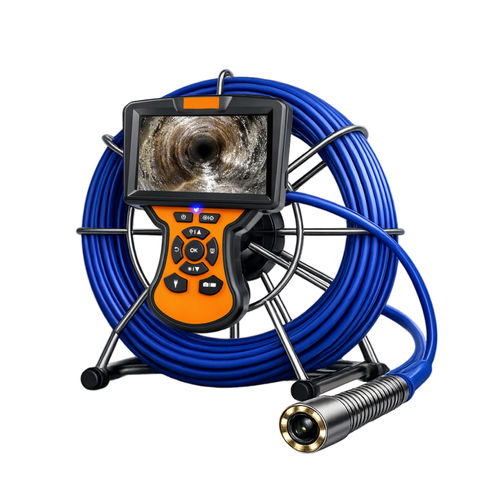

Flexible video endoscope KM-01

for camerasfor LEDsarticulated

Overview
The COBB Fibre Ottiche KM-01 inspection camera is designed to provide a practical and efficient solution for industrial video inspections inside pipelines, cavities and hard-to-access spaces.

Main advantages

• Integrated 5" high-definition color LCD display for clear real-time image viewing.
• HD CMOS sensor with 120° fisheye lens and automatic focus for wide field of view and sharp images.
• Depth of field from 5 cm to infinity, ensuring detailed imaging in varying conditions.
• Adjustable LED illumination and IP67 protection rating for use in low-light and demanding environments.
• 50-meter cable length enabling long-distance inspections inside systems and infrastructures.
• Photo and video recording supported on MicroSD card.
• 3000 mAh rechargeable battery providing approximately 3–4 hours of operating autonomy.
• Ergonomic, robust and easy-to-use design suitable for technicians and professionals in construction, industrial, energy and maintenance applications.

Usage
Ideal for inspections of industrial pipelines and conduits, cavities and other hard-to-access spaces where long-reach, protected and illuminated imaging is required.

Characteristics / technical specifications

• Model: KM-01
• Display: 5" high-definition color LCD
• Image sensor: HD CMOS
• Lens: 120° fisheye
• Focus: Automatic
• Depth of field: from 5 cm to infinity
• Illumination: Adjustable LED
• Protection rating: IP67
• Cable length: 50 m
• Recording: Photo and video on MicroSD card
• Battery: 3000 mAh rechargeable (approx. 3–4 hours autonomy)
• Applications: Pipeline inspection, industrial inspections, construction, energy, maintenance
