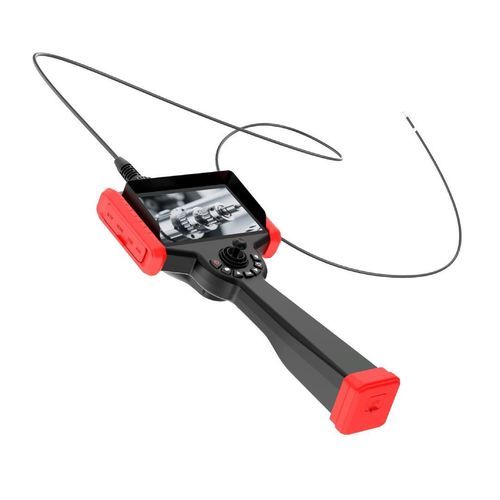

Flexible videoscope NZQ2.8 Dual Vision

for remote visual inspectionfor pipe inspectionLCD display

Product overview
The COBB NZQ2.8 Dual Vision is a professional industrial video endoscope engineered for inspections in confined spaces where a very small probe diameter and multi-directional viewing are required. The Ø2.8 mm probe integrates Dual Vision (forward + side view) to inspect different perspectives without probe replacement. The system is built on the modular COBB NZQ platform and includes a 6" Full HD touchscreen, 360° probe articulation, Wi‑Fi, photo/video capture, advanced image management and a comparative 2D measurement function.

Key features

• Ø2.8 mm probe: extremely compact diameter for access to narrow cavities and restricted openings.
• Dual Vision: combined forward and side viewing directions in a single probe.
• 360° articulation: full directional tip control.
• Available probe lengths: 1 m, 2 m and 3 m.
• 6" Full HD touchscreen (1920 × 1080) for intuitive image and menu control.
• Modular NZQ platform with quick-change probe system for rapid interchangeability.
• Integrated Wi‑Fi for wireless connectivity and file transfer.
• Photo and video capture for inspection documentation.
• Zoom and freeze-frame functions accessible from the main unit.
• Comparative 2D measurement function for image-based assessments.
• Annotations and customizable file naming.
• Advanced archive: internal memory plus TF card support.
• Video output: HDMI and USB Type‑C.
• Adjustable LED illumination with multiple intensity levels.
• Probe protection rating: IP67.
• Main unit protection rating: IP54.
• Battery life: ≥8 hours (declared).

Dual Vision: Forward + Side View
The probe houses two viewing directions (forward and side) providing complementary perspectives from one insertion. Field of view: 120°. Depth of field: 3–70 mm. This configuration enables inspection of areas directly ahead of the tip and lateral surfaces of cavities without swapping probes.

Modular platform and quick probe change
The COBB NZQ2.8 Dual Vision is part of the modular NZQ architecture: the Ø2.8 mm probe is removable via a quick-change interface so different probe types and lengths can be used on the same main unit for flexible inspection setups.

6" Full HD Touchscreen Monitor and controls
The main unit features a 6" Full HD touchscreen (1920 × 1080) that provides direct control of images, menus, capture, zoom, freeze-frame and measurement tools. The touchscreen is complemented by joysticks and physical controls to facilitate operation during extended inspection tasks.

Technical specifications

• Model / Series: NZQ2.8 Dual Vision
• Probe diameter: Ø2.8 mm
• Viewing directions: Dual Vision (forward + side)
• Field of view (FOV): 120°
• Depth of field: 3 – 70 mm
• Probe articulation: 360°
• Available probe lengths: 1 m, 2 m, 3 m
• Main display: 6" Full HD touchscreen (1920 × 1080)
• Connectivity: Wi‑Fi, HDMI, USB Type‑C
• Image capture: photo and video (direct capture)
• Measurement: comparative 2D measurement function
• Annotations: supported with customizable filenames
• Storage: internal memory and TF card support
• Illumination: adjustable integrated LED
• Probe protection rating: IP67
• Main unit protection rating: IP54
• Battery life: ≥8 hours (declared)
• Platform: COBB NZQ modular platform with quick-change probe system
