Flexible video endoscope MF3

for camerasarticulatedlong-distance

Product overview

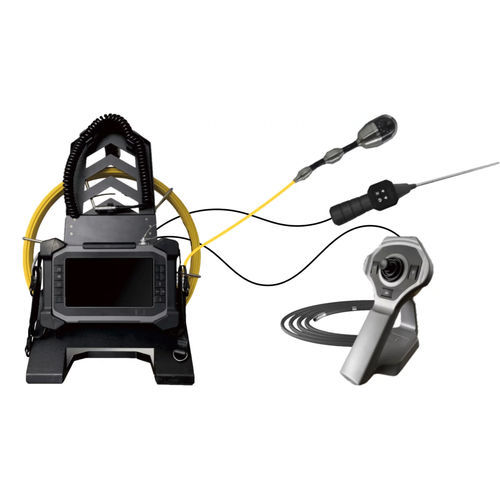

The COBB Fibre Ottiche MF3 multifunctional video endoscope is an integrated platform for industrial video inspection. It combines long-reach camera heads, a joystick-articulated flexible probe and a rigid borescope probe to cover inspections in pipelines, large installations and complex geometries.

Kit composition

• Three video endoscopic probes: long-reach, articulating flexible and rigid borescope, operable with a single control unit.
• Two interchangeable camera heads for long-reach probes: Ø40 mm and Ø24 mm with operating lengths of 30 m or 40 m.
• One Ø8.4 mm flexible video endoscope, length 3 m, articulating tip with joystick control for confined or articulated spaces.
• One Ø6.4 mm rigid borescope probe for direct, precise and repeatable inspections in holes and cavities.

System capabilities
The MF3 platform enables rapid change between probe types and camera heads, allowing operators to perform deep, flexible and rigid inspections with a single system. This configuration reduces setup time and operational complexity while maintaining consistent imaging and measurement functions.

Applications
Designed for industrial video inspection tasks including pipeline inspection, large-scale installations and infrastructure, maintenance checks in complex geometries, and detailed cavity or bore examinations where access is limited.

Technical specifications

• Model: MF3
• Kit includes: 3 video endoscopic probes
• Long-reach camera head diameters: 40 mm and 24 mm
• Long-reach operating lengths: 30 m or 40 m
• Flexible video endoscope: Ø8.4 mm, length 3 m, articulating tip with joystick
• Rigid borescope probe: Ø6.4 mm, length 25 cm
• Monitor: 7.0" TFT LCD touch, resolution 800×400; image 1024×768; video 640×480 / 800×400
• Frame rate: 30 fps
• Protection rating: IP67 (probes and camera heads)
• Battery: 11.1 V, 7,000 mAh — autonomy 5–6 h — recharge time 8 h
• Operating temperature: -10°C to 50°C
• Storage case: transport case with cable reel for probe
• Accessories / options: motorized 40 mm camera head (MF3-OB/40), 24 mm camera head (MF3-OB/24), flexible probe Ø8.4 mm L=3 m (MF3-EF/3), rigid probe Ø6.4 mm L=25 cm (MF3-ER/02)
