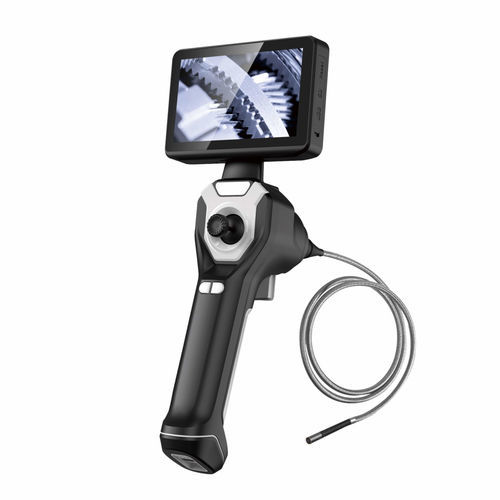

Flexible video endoscope NGC

articulatedwith joystickportable

Overview
The NGC is a professional flexible video endoscope designed for industrial inspections. It offers one-handed joystick control with full articulation, a tiltable high-resolution 4.5" TFT monitor, a stainless steel insertion tube rated for immersion and mechanical stress, and multiple power modes including rechargeable lithium-ion battery and continuous mains operation (100–240 VAC).

Key features

• One-handed control: ergonomic joystick enabling full 360° articulation of the inspection tip.
• Automatic brightness adjustment: adaptive illumination with anti-reflection technology for clear images.
• Tiltable monitor: adjustable monitor inclination to optimize viewing angle during inspection.
• Articulation lock: dedicated lock/release button to hold the tip in position.
• On-board menu: advanced menu for camera settings plus photo and video review on the device.
• Robust construction: stainless steel insertion tube with braid reinforcement, resistant to crushing and immersion (IP67).
• High-resolution display: 4.5" TFT LCD, 1280 × 720 pixels.
• Battery and continuous power: rechargeable Li-ion battery (>4 h) and option for continuous mains power (100–240 VAC).

Variants and codes

• Diameters available: 4.0 mm / 6.0 mm
• Lengths 4.0 mm: 1.5 m · 2.0 m · 3.0 m
• Lengths 6.0 mm: 1.0 m · 2.0 m · 3.0 m
• Codes: NGC4.0-1500/4, NGC4.0-2000/4, NGC4.0-3000/4, NGC6.0-1000/4, NGC6.0-2000/4, NGC6.0-3000/4

Technical specifications

• Model: NGC Series
• Probe diameters: 4.0 mm / 6.0 mm
• Probe lengths: 1.0 m / 1.5 m / 2.0 m / 3.0 m (depending on variant)
• Protection: IP67 (immersion resistant)
• Viewing direction: 0° (forward)
• Field of view: 120°
• Articulation: 4-way head, joystick mechanical control, up to 360° articulation
• Monitor: 4.5" color TFT LCD, 1280×720 px, anti-reflection
• Image sensor: VGA CMOS 1,000,000 px
• Zoom: 5x
• Illumination: integrated LEDs in probe head
• Image formats: photo jpeg/bmp/jpg, video AVI
• Storage: SD card slot
• White balance / anti-reflection: automatic
• Power: Li-ion battery 5V/2A 3500mAh (>4 h) and/or mains 100–240 VAC for continuous operation
