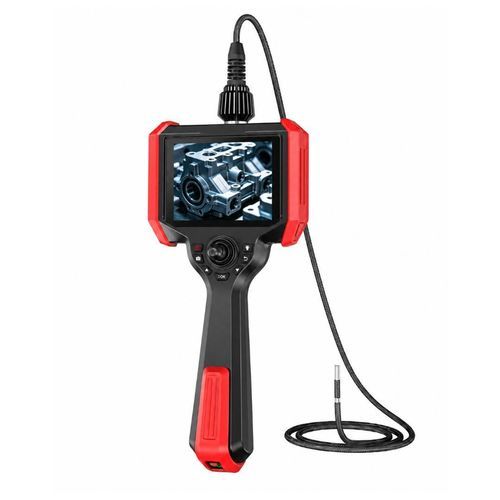

Flexible videoscope NZL

for pipe inspectionfor remote visual inspectionwith WIFI kit

Overview
COBB NZL is a modular industrial video endoscopy system built around one main unit with quickly interchangeable probes. One platform supports probe diameters Ø2.0, Ø2.8, Ø3.9 and Ø6.0 mm; optical configuration, depth of field, resolution, illumination and maximum articulation angle vary depending on the selected probe. The system includes a 5" industrial LCD display, photo and video recording, and Wi‑Fi connectivity for inspection and documentation.

Key features

• Quickly interchangeable probes in Ø2.0 mm, Ø2.8 mm, Ø3.9 mm and Ø6.0 mm diameters.
• 5-inch industrial LCD display with adjustable backlighting.
• 360° articulation control on articulating configurations for precise probe tip orientation.
• Front and side viewing available across all diameters; dual-view configurations available for Ø2.8, Ø3.9 and Ø6.0 mm probes.
• Photo and video capture with functions: freeze-frame, image capture during recording, zoom, rotation/flip, playback and file management.
• Built-in Wi‑Fi for wireless connection and transmission.
• HDMI and Type-C outputs, TF card slot, 32 GB standard storage (expandable up to 128 GB).
• Rechargeable lithium battery providing ≥4 hours of battery life.
• IP54 protection for the main unit; IP67 specifically documented for Ø3.9 and Ø6.0 mm probes.
• Tungsten braided sheaths available in specific probe configurations.

Probes and lengths
Ø2.0 mm: Available lengths: 1 · 2 · 3 m
Ø2.8 mm: Available lengths: 1 · 2 · 3 m
Ø3.9 mm: Available lengths: from 1 to 6 m (documented dual-view configuration: 3 m)
Ø6.0 mm: Available lengths: from 1 to 10 m
The optical configuration, depth of field, resolution, illumination and maximum articulation angle vary depending on the selected probe.

Illumination
Ø2.0 and Ø2.8 mm probes use integrated LED illumination. Ø3.9 and Ø6.0 mm probes use a high-power rear LED with light transmitted through optical fibre, enabling tailored illumination solutions per probe size and configuration.

Inspection capture and management
The platform supports photo and video recording, image capture during video, freeze-frame, zoom, rotation/flip, playback and file deletion. Additional documented functions include grayscale mode, date/time watermark, customizable annotations, sequential file numbering, grid display and on-screen visual references. Wi‑Fi enables wireless connectivity and transmission.

Technical specifications

• Model: NZL (modular main unit with interchangeable probes).
• Probe diameters: Ø2.0 mm, Ø2.8 mm, Ø3.9 mm, Ø6.0 mm.
• Probe lengths: Ø2.0 & Ø2.8 = 1 / 2 / 3 m; Ø3.9 = 1–6 m; Ø6.0 = 1–10 m.
• Viewing modes: Front view, Side view (all probes); Dual view (Ø2.8, Ø3.9, Ø6.0).
• Display: 5" industrial LCD, adjustable backlight.
• Articulation: 360° control (on articulating probe configurations).
• Illumination: integrated LEDs (Ø2.0, Ø2.8); rear high-power LED + fibre transmission (Ø3.9, Ø6.0).
• Imaging functions: photo/video capture, freeze-frame, zoom, rotation/flip, playback, file management, grayscale, annotations, watermark, sequential numbering, grid display.
• Connectivity & outputs: Built-in Wi‑Fi, HDMI, USB Type‑C, TF card slot.
• Storage: 32 GB standard, expandable up to 128 GB (TF card).
• Battery: Rechargeable lithium battery, ≥4 hours operating time.
• Ingress protection: Main unit IP54; IP67 for Ø3.9 and Ø6.0 probes as per technical documentation (no IP rating listed for Ø2.0 and Ø2.8 in the technical table).
• Sheath: Tungsten braided sheath options depending on probe diameter.
