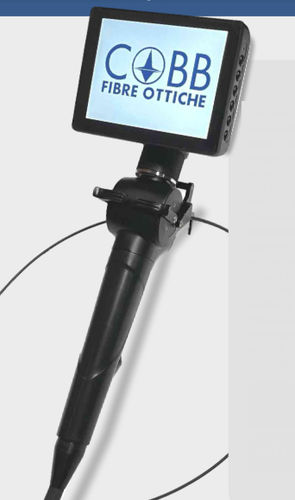

Flexible videoscope MVD series

for pipe inspectionfor remote visual inspection2-way

MVD Series – Articulating Flexible Video Endoscopes
The MVD series is designed to provide application flexibility with multiple diameters and length configurations to meet industrial inspection requirements.

Diameters, articulation and imaging
Articulating tips are available in 2-way or 4-way mechanical control for precise positioning. Imaging options include HD CCD sensors with resolutions reported up to 2,000,000 pixels (applicable to certain 4.0 mm and 5.5 mm models); smaller diameters may use lower-resolution sensors as specified per variant.

Operating lengths and controls
The system offers operating lengths from approximately 1.0 m to 4.0 m depending on diameter. A detachable 5" touch LCD provides direct access to functions and settings for fast, intuitive operation in industrial inspection tasks.

Key features

• Ergonomic portable design, easy to operate
• Tungsten-braided insertion tube with anti-corrosion and wear-resistant properties
• Mechanical articulation control in 2 or 4 directions with bending angles ≥ 180° on articulated models
• CCD resolution up to 2,000,000 pixels on selected models (4.0 mm, 5.5 mm)

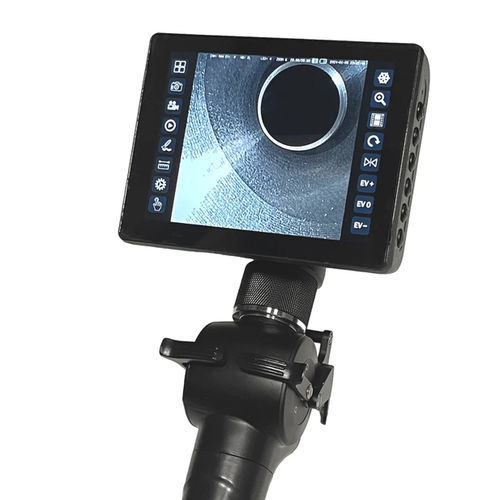

• Detachable 5" high-definition LCD monitor (touch)
• Available diameters: 1.8 mm, 2.0 mm, 2.8 mm, 4.0 mm, 5.5 mm (additional diameters referenced in some documentation)
• Available lengths (depend on diameter): 1.1 m, 1.2 m, 1.5 m, 2.0 m, 3.0 m, 4.0 m
• Rechargeable lithium battery (e.g., 3.7V 3350–3700 mAh) and AC 100–240 V
• Outputs: HDMI, mini USB, Wi‑Fi; micro SD card slot for storage
• IP67 waterproof protection along entire probe length

Overview
Imaging technology combined with high‑efficiency LED illumination and fibre optics supports inspections from compact 1.8 mm probes to larger diameters. The MVD range is configured for versatility in industrial inspection: precise articulation, selectable resolutions and a detachable touchscreen monitor for documentation and analysis.

Technical specifications

• Series: MVD
• Type: Articulating flexible video endoscopes for industrial inspection
• Diameters: 1.4 mm (mentioned), 1.8 mm, 2.0 mm, 2.8 mm, 4.0 mm, 5.5 mm
• Operating lengths: 1.0 m / 1.1 m / 1.2 m / 1.5 m / 2.0 m / 3.0 m / 4.0 m (dependent on diameter)
• Resolutions reported: 160,000 px (smaller diameters), 1,000,000 px and up to 2,000,000 px for larger-diameter models (see variant details)
• Monitor: 5.0" TFT LCD touch, detachable
• Articulation: none / 2-way / 4-way; bending angle ≥ 180° for articulated models
• Field of view: 90°; viewing direction: 0° (forward) with retrograde view possible on models with >180° flexion
• Digital zoom: 7x
• Depth of field: from 5 mm to infinity
• Illumination: LED and fibre optics
• Insertion tube: tungsten braided, anti‑corrosion, wear resistant
• Waterproof rating: IP67 along probe length
• Image format: JPEG; video format: MP4
• Outputs: HDMI, Wi‑Fi, mini USB
• Memory: micro SD slot
• White balance/AGC/exposure and image modes adjustable
• Power: rechargeable lithium battery (model-dependent) and AC 100–240 V
