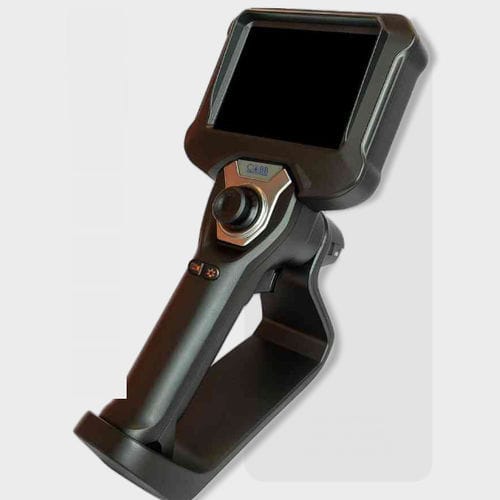

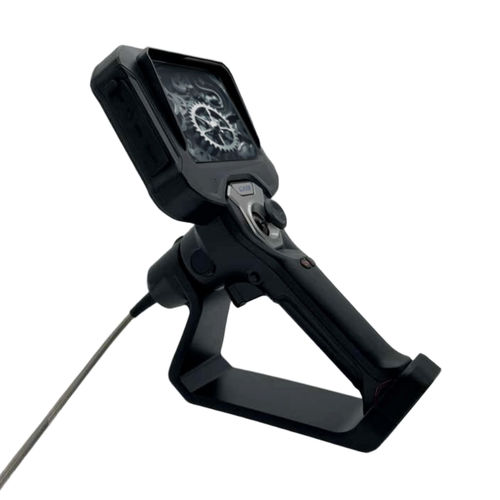

Flexible video endoscope LHC

motorfor pipe inspectionfor battery

Overview
The COBB Fibre Ottiche LHC series of industrial flexible video endoscopes provides professional visual inspection systems for industrial inspection, technical maintenance and non‑destructive testing (NDT). Available diameters range from 2.8 mm to 10 mm with operating lengths from 1 m to 20 m, allowing inspection of pipes, ducts, mechanical components, engines, heat exchangers and other confined or hard‑to‑reach areas.

Configurations and series variants
The LHC family includes multiple configurations to meet specific operational needs. Dual‑camera versions (4.0 mm, 6.5 mm and 10 mm) combine a forward view (0°) and a side view (90°) for more comprehensive inspection coverage in demanding applications.

Control and maneuverability
All LHC video endoscopes feature a 4‑way articulating tip controlled by an ergonomic joystick for precise positioning through complex paths. An articulation lock button secures the tip in position when required. One‑hand operation enables quick selection between cameras on dual‑camera models.

Image viewing and management
Systems include a 5" anti‑glare LCD display (TFT 1280 × 720) for clear on‑site viewing. Integrated software supports real‑time display, image/video capture and basic processing. HDMI output and integrated Wi‑Fi allow connection to external monitors and real‑time transmission to mobile devices for reporting and remote viewing.

Industrial‑grade construction
The insertion tube is protected by a stainless steel sheath designed to resist crushing forces and permit immersion in water or oils while remaining lightweight for extended inspections. The unit supports rechargeable lithium‑ion batteries (>4 hours runtime), an extra battery compartment for extended autonomy and continuous operation mode via 220 VAC supply.

Key features

• Ergonomic one‑hand joystick control; quick camera switching on dual‑camera models
• Automatic brightness adjustment and anti‑reflection technology for clear imaging
• Articulation lock to fix the tip in the desired position
• Advanced menu for camera settings, photo and video review on the 5" monitor
• HDMI output for external displays
• Integrated Wi‑Fi for live image transmission to mobile devices
• Stainless steel insertion tube resistant to crushing and immersion
• TFT LCD monitor 1280 × 720 pixel resolution
• Rechargeable lithium‑ion battery with >4 hours operating time; additional battery compartment
• Continuous power supply mode via 220 VAC

Technical specifications

• Series/model: LHC (COBB Fibre Ottiche)
• Available diameters: 2.8 mm – 10 mm
• Available lengths: 1 m – 20 m
• Dual‑camera option: 4.0 mm, 6.5 mm, 10 mm (0° forward + 90° side)
• Tip articulation: 4‑way, joystick control
• Articulation lock: dedicated lock/release button
• Monitor: integrated 5" anti‑glare LCD; TFT 1280 × 720
• Image handling: real‑time viewing, capture and basic processing via integrated software
• Outputs/connectivity: HDMI output; integrated Wi‑Fi
• Construction: stainless steel protective sheath; resistant to crushing and immersion
• Power: rechargeable lithium‑ion battery (>4 hours); extra battery compartment; continuous 220 VAC mode
• Other features: automatic brightness adjustment, anti‑reflection technology, one‑hand control
