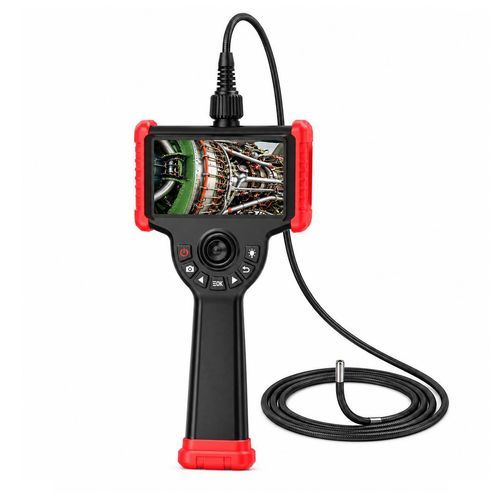

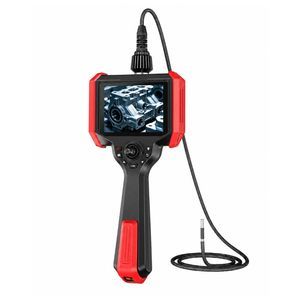

Flexible video endoscope NZQ

with joystickwaterproofinterchangeable probe

Description
COBB NZQ is a modular industrial videoscope system designed to combine high-definition imaging, an FHD touchscreen and quickly interchangeable probes in a single professional platform. A single main unit can be configured with probes Ø2.0 mm, Ø2.8 mm, Ø3.9 mm and Ø6.0 mm; 6" FHD touchscreen (1920 × 1080), 360° articulation in all directions, photo and video capture, advanced file management and Wi‑Fi connectivity.

Key features

• Quickly interchangeable probes in diameters Ø2.0 mm · Ø2.8 mm · Ø3.9 mm · Ø6.0 mm.
• 6" FHD touchscreen (1920 × 1080) with supplementary physical controls/joystick.
• 360° articulation in all directions available for all diameters.
• Front, side and dual view (dual view available for Ø2.8 · Ø3.9 · Ø6.0 mm; dual view documented at 3 m for Ø3.9 mm).
• Photo and video capture, still frame and zoom functions directly from the unit.
• Advanced file management: rename, file info, multi-select, copy, move, delete.
• Graphic and text annotations, shapes, markings and freehand drawing.
• 2D measurement using a known dimensional reference.
• Image comparison between live view and saved images.
• Integrated Wi‑Fi for wireless connection via app.
• Connectivity: TF (memory card slot), HDMI, Type‑C and audio jack depending on hardware configuration.
• Memory: internal memory + TF card up to 128 GB.
• Battery life: rechargeable batteries with declared autonomy ≥ 8 hours.
• Protection: main unit IP54; probes Ø3.9 and Ø6.0 mm documented IP67 (Ø2.0 and Ø2.8 mm: not determined).
• Illumination: integrated LED for Ø2.0 and Ø2.8 mm; high‑power LED with fiber‑optic transmission for Ø3.9 and Ø6.0 mm, brightness adjustable.

Probes and available lengths

• Ø2.0 mm — available lengths: 1 m · 2 m · 3 m.
• Ø2.8 mm — available lengths: 1 m · 2 m · 3 m.
• Ø3.9 mm — available lengths: 1–6 m; documented dual view: 3 m.
• Ø6.0 mm — available lengths: 1–10 m.

Three viewing configurations

• Front view: available for Ø2.0 · Ø2.8 · Ø3.9 · Ø6.0 mm.
• Side view: available for Ø2.0 · Ø2.8 · Ø3.9 · Ø6.0 mm.
• Dual view: available for Ø2.8 · Ø3.9 · Ø6.0 mm (simultaneous front and side display on the FHD screen).

Characteristics / technical specifications

• Modularity: main unit compatible with interchangeable probes Ø2.0 / Ø2.8 / Ø3.9 / Ø6.0 mm.
• Display: 6" FHD touchscreen 1920 × 1080.
• Articulation: 360° in all directions.
• Capture: photo, video, still frame, zoom, annotations, 2D measurement, image comparison.
• File system: advanced management (rename, file info, multi-select, copy, move, delete).
• Connectivity: integrated Wi‑Fi; TF, HDMI, Type‑C, audio jack (depending on configuration).
• Memory: internal + TF card up to 128 GB.
• Battery life: ≥ 8 hours with rechargeable batteries (declared).
• Protection: main unit IP54; probes Ø3.9 and Ø6.0 mm documented IP67.
• Illumination: integrated LED for Ø2.0/Ø2.8; high‑power LED with fiber optics for Ø3.9/Ø6.0; adjustable brightness.
• Probes: lengths and optical configurations, depth of field, resolution and bending angle vary by diameter and length.
