Rigid videoscope MUCAM T900

for turbine engine inspectionfor remote visual inspectionUV

Product overview

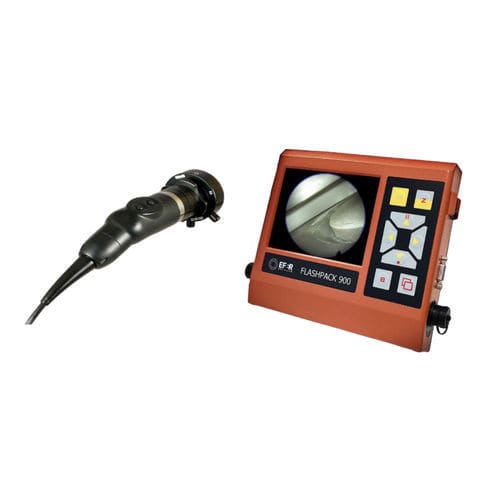

Combined with the FLASHPACK 900 control unit, the MUCAM T900 provides a video inspection solution for aircraft engine and mechanical component inspections. The system is designed to integrate the video capability with the Sirius series of rigid endoscopes for inspections under white light and ultraviolet illumination.

Key Features

• Quick-lock connection system for eyepiece mounting on rigid endoscopes
• Interchangeable optical accessories with focus adjustment
• Integrated video processor for immediate image output
• Two-button remote control for on-site operation
• ULTEM molded housing for lightweight chemical resistance
• High-sensitivity 1/3” EXview HAD™ CCD sensor
• Camera head with C-mount connection for modular optics
• Detachable 2 m cable for flexible deployment

Technical specifications

• Model: MUCAM T900
• Control unit: compatible with FLASHPACK 900
• Sensor: 1/3” EXview HAD™ CCD (high sensitivity)
• Housing material: ULTEM molded construction
• Mounting: quick-lock system for eyepiece
• Optics: C-mount camera head; interchangeable accessories with focus adjustment
• Control: two-button remote control
• Cable: detachable, length 2 m
• Inspection modes: white light and UV (when used with compatible Sirius endoscopes)
