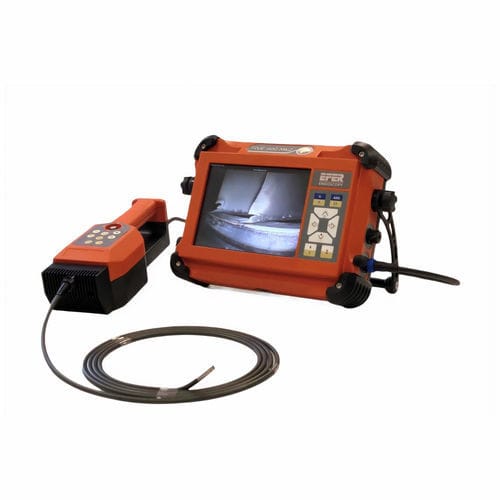

UV video endoscope ARGUS 900

flexiblefor cableswith joystick

Overview
The ARGUS 900 UV flexible video endoscopic probes integrate dedicated ultraviolet illumination and imaging components to deliver optimized UV distribution and accurate fluorescence rendering for inspection tasks. The ARGUS 900 UV series is designed to operate with the VEGA 900 UV light source and the TIVE 900 MK2 control unit.

Compatibility & Operation
Interchangeable ARGUS 900 probes provide full remote operation of articulation and video functions. The probes connect via an integrated video/light cable to the VEGA 900 UV light source, TIVE 900 MK2 operating unit, or compatible FLASHPACK 900 modules. When paired with the TIVE 900 (with 3DSIZER option) and ARGUS probes featuring distal stereo tips, the system enables in-situ 3D measurements.

Key Features

• Available diameters: 4 mm and 6 mm; lengths up to 3 meters
• Interchangeable objectives for task-specific optics
• Orbital distal-tip articulation controlled via joystick
• Automatic shutter system for exposure control
• Integrated probe video function controls and full remote operation of associated control unit
• Distal tip temperature alarm for monitoring
• Integrated video/light cable for connection to VEGA 900 UV and operating units
• Interchangeable probes compatible with FLASHPACK 900 and TIVE 900 MK2

Technical Specifications

• Series: ARGUS 900 UV
• Application: UV fluorescence inspections with optimized UV illumination and imaging
• Compatible light sources / control units: VEGA 900 UV, TIVE 900 MK2; FLASHPACK 900 compatibility for interchangeable probes
• Probe diameters: 4 mm and 6 mm
• Maximum probe length: up to 3 m
• Optics: interchangeable objectives
• Tip control: orbital distal-tip articulation via joystick; optional distal stereo tips for 3D measurement
• Imaging controls: integrated probe video controls and full remote operation of the control unit
• Safety: distal tip temperature alarm
• Cable: integrated video/light cable for connection to VEGA 900 UV and operating units
• Other: automatic shutter system
