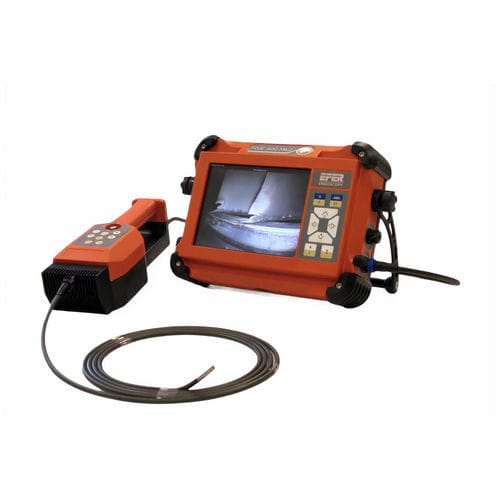

Video endoscope with joystick ARGUS

motorfor pipeworkparts

Overview
Advanced measurement and visual inspection system built around the ARGUS 900 probe and a compatible operating/control unit (e.g. FLASHPACK 900 or TIVE 900 MK2). ARGUS 900 video probes offer interchangeable objectives and integrated LED illumination for inspection and in-situ measurement tasks.

Key Features

• Probe diameters: 4 mm (lengths up to 3 m) and 6 mm (lengths up to 8 m)
• Interchangeable forward-view (axial) and side-view objectives; standard or stereo 3D visualization options
• Integrated LED illumination for clear imaging in confined spaces
• Motorized orbital tip articulation controlled by joystick for precise positioning
• Integrated probe video controls and full remote operation of the associated control unit
• Distal tip temperature alarm for safe operation in thermally sensitive environments

Applications
Industrial visual inspection and dimensional measurement in confined or hard-to-reach areas: turbine and engine bores, compressors, pipes, castings and assemblies. When combined with the 3DSIZER option and ARGUS probes fitted with stereo distal tips, the system enables high-precision in-situ 3D measurements.

Technical specifications

• Product family: ARGUS flexible video endoscopes
• Model: ARGUS 900 probe
• Compatible control units: FLASHPACK 900, TIVE 900 MK2
• Probe diameters and lengths: 4 mm (up to 3 m), 6 mm (up to 8 m)
• Optics: Interchangeable forward-view and side-view objectives; standard or stereo 3D visualization
• Illumination: Integrated LED
• Controls: On-probe video controls; full remote control of associated unit
• Tip articulation: Motorized orbital articulation via joystick
• Safety: Distal tip temperature alarm
• Measurement option: 3DSIZER for in-situ 3D measurements with stereo distal tips
