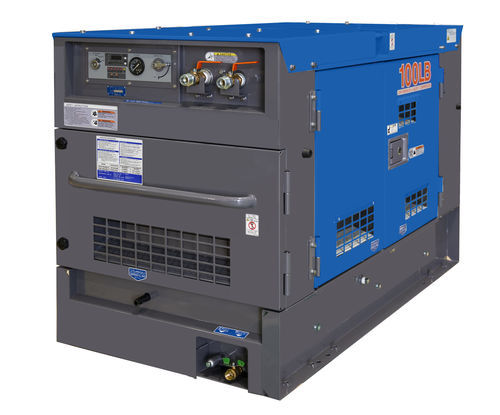

Screw compressor DAS-100LBE

airdiesel engineportable

Overview
Portable diesel-driven air compressor DAS-100LBE delivering 2.8 m³/min (100 cfm) at 0.7 MPa (102 psi), powered by a Kubota D1105-K3B engine. Designed for industrial on-site pneumatic tools and maintenance operations.

Main specifications

• Model: DAS-100LBE
• Rated pressure: 0.7 MPa (102 psi)
• Air delivery: 2.8 m³/min (100 cfm)
• Air tank capacity: 0.027 m³
• Engine: Kubota D1105-K3B
• Fuel: Diesel
• Fuel consumption: 4.4 L/h
• Fuel tank capacity: 32 L
• Eco base capacity: 64 L
• Dimension (L×W×H): 1,580 × 800 × 1,020 mm
• Weight: 497 kg
• Sound level (from 7 m): 66 dB
• Emission regulation: Tier 3 (Japanese regulation)

Engine and fuel
Kubota D1105-K3B diesel engine provides dependable power for continuous operation. Fuel consumption is approximately 4.4 L/h with a 32 L tank for extended autonomy; the 64 L eco base supports longer work cycles.

Installation, dimensions and transport
Compact footprint (1,580 × 800 × 1,020 mm) and 497 kg weight facilitate on-site installation or integration into mobile units. Verify lifting points and mounting requirements prior to transport.

Noise, compliance and maintenance
Measured noise level is 66 dB at 7 m. Emission compliance: Tier 3 (Japanese regulation). Regular maintenance of air filters, lubrication and fuel system is recommended to ensure performance.

Typical applications
Suitable for construction sites, industrial maintenance, road work and other applications requiring portable compressed air for pneumatic tools and equipment.
