Screw compressor DIS-200VPBE

airdiesel-poweredmobile

Product

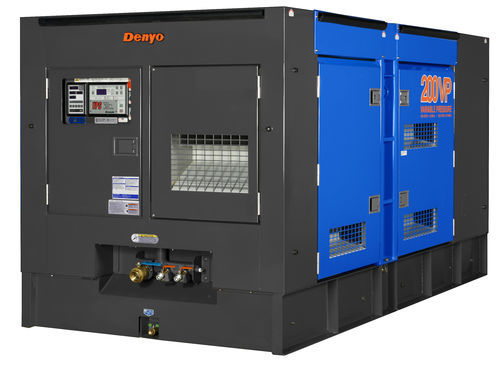

Box-type air compressor DIS-200VPBE by Denyo, delivering 21.2 m³/min (749 cfm) at a rated pressure of 1.27 MPa (184 psi). Suitable for industrial sites requiring a mobile, weather-protected compressed air source.

Key specifications

• Model: DIS-200VPBE
• Rated Pressure: 184 psi / 1.27 MPa
• Air Delivery: 21.2 m³/min (749 cfm)
• Air Tank Capacity: 0.236 m³
• Engine: Hino J08E-UK
• Fuel: Diesel
• Fuel Consumption: 32.8 L/h
• Fuel Tank Capacity: 400 L
• Emission Regulation: Tier 3 (Japanese regulation)
• Dimensions (L×W×H): 3,610 × 1,780 × 1,870 mm
• Eco Base Capacity: 715 L
• Weight: 3,480 kg
• Sound Level (From 7 m): 72 dB

Performance & applications

• Intended for construction, mining, infrastructure and general industrial use
• Continuous operation at rated pressure to power pneumatic tools and equipment
• Box-type enclosure provides protection against weather and facilitates transport

Engine and fuel

• Equipped with Hino J08E-UK diesel engine
• Consumption 32.8 L/h with 400 L tank for extended operation without frequent refuelling

Installation and dimensions

• Overall dimensions: 3,610 × 1,780 × 1,870 mm
• Eco base capacity: 715 L
• Weight: 3,480 kg — suitable for transport on heavy trailers or chassis mounts

Noise and compliance

• Sound level: 72 dB (measured at 7 m)
• Emission standard: Tier 3 (Japanese regulation)

Options
No options listed on the page.

Ordering & support

• Contact Denyo or an authorized distributor for availability, optional configurations and quotation
• Provide site conditions and intended use to confirm the optimal configuration
