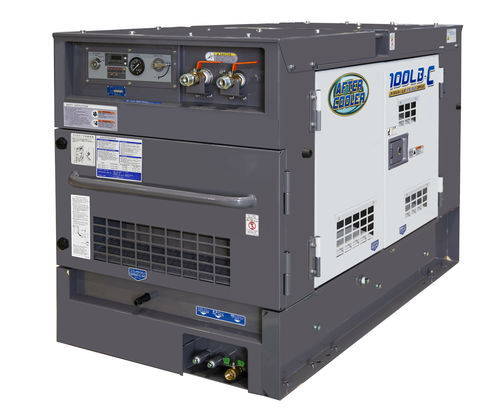

Screw compressor DAS-100LBE-C

airdiesel engineportable

Overview
Portable diesel-driven air compressor for industrial applications, providing 0.7 MPa (102 psi) and 2.8 m³/min (100 cfm) air delivery. Equipped with a Kubota D1105-K3B engine and a 0.027 m³ air tank for consistent supply.

Technical specifications

• Model: DAS-100LBE-C
• Rated pressure: 102 psi / 0.7 MPa
• Air delivery: 2.8 m³/min (100 cfm)
• Air tank capacity: 0.027 m³ (27 L)
• Engine: Kubota D1105-K3B
• Fuel: Diesel
• Fuel consumption: 4.4 L/h
• Fuel tank capacity: 32 L
• Eco base capacity: 64 L
• Emission regulation: Tier 3 (Japanese regulation)
• Dimensions (L×W×H): 1,580 × 800 × 1,020 mm
• Weight: 507 kg
• Sound level (at 7 m): 67 dB

Applications & buyer benefits

• Suitable for construction sites, industrial maintenance and rental fleets
• Kubota engine delivers reliable low-emission operation compliant with Tier 3
• Compact footprint with integrated fuel and eco base tanks for extended runtime
• Designed for easy transport and operation on worksites
